You can also follow this guide if you want to re-paste (apply new thermal paste) your Framework Laptop. However, we don’t necessarily recommend doing that unless needed, since this operation requires exposing and handling the bare CPU die, which is somewhat delicate.
Make sure to follow the steps in this guide carefully, including unscrewing and rescrewing the fasteners in the right order on the heatsink and fan.
Tools
Parts
-
-
Power off the Framework Laptop by navigating to the Windows icon on the bottom left and clicking on "Power" followed by "Shut down," or if on Linux, the equivalent action there.
-
-
-
Unplug your power cable from the USB-C Expansion Card in your Framework Laptop.
(I had formerly left a long comment here about how you guys 'forgot' to have a bit about removing the expansion cards...and while some official guide on this is probably a good idea to have, it's...not actually necessary to remove them! Even though in the build guide, they go in last, they don't actually need to come out in order to replace the screen! Heh.)
-
-
-
Close the lid on your Framework Laptop and place it upside down on a soft, non-marring surface, such as the bag that it shipped in.
-
Using the T5 bit in the Framework Screwdriver, unscrew the 5 fasteners on the Bottom Cover. These fasteners will remain attached in the Bottom Cover so that you do not lose them.
-
The fastener on the bottom left (circled in red) will not unscrew as far as the others, as it is acting as a lifter for the Input Cover.
-
You'll hear this fastener start clicking as you rotate when it is unscrewed far enough.
-
Do not use a powered tool for these steps, as this will likely result in damage to the fasteners.
It would be super nice if the lower-left screw were circled in red as the text indicates!
Thank you for writing the specific detail on the lower left corner screw.
I thought something was not working correct until re-read this guide.
-
-
-
Flip the Framework Laptop back over and open the lid to around 120 degrees.
-
Important: Pull the Input Cover off carefully as it is still attached to the Mainboard via the Touchpad Cable. You don't need to disconnect this cable to do most repairs. You can just flip the Input Cover over. If you do want to disconnect it though, make sure to disconnect the Mainboard side using the finger loop over the orange label.
-
The bottom right corner of the Input Cover lifts up when the five fasteners are properly unscrewed from the previous step. You should not have to use any excessive force to remove the Input Cover.
-
Carefully lift the cover up from the bottom right corner. If you need to, you can use the spudger end of the Framework Screwdriver to lift it as well. Lift the Input Cover off the Mainboard, flip it over (keyboard side down), and place it about halfway on the Bottom Cover.
-
Be sure not to put too much force on the Touchpad Cable when doing this.
-
If the LEDs on the left and right sides of the system are flashing red when you lift off the cover, it means the system is still powered on. Make sure your power cable isn't plugged in and that you have shut down correctly.
-
Note that it may take up to 30 seconds after shutting down for the system to fully power off. Wait until the LEDs stop flashing before proceeding.
-
You should keep the Battery connector plugged in unless you need to replace the Battery, Mainboard, or Speakers. This connector is easy to accidentally damage, so it's better to not handle it.
Important: Pull the Input Cover off carefully as it is still attached to the Mainboard via the Touchpad Cable. You don't need to disconnect this cable to do most repairs. You can just flip the Input Cover over. If you do want to disconnect it though, make sure to disconnect the Mainboard side using the finger loop over the orange label.
While that’s true for most repairs, it’s pretty much essential to disconnect that cable for this repair, so I think the guide should probably amend this boilerplate!
You should flip the keyboard around the x-axis (so that the back edge comes towards you as you flip) and not the z-axis (resulting in the left edge rotating to the right). I started to do the z-axis and the touchpad cable was getting twisted. I am capable of messing up all instructions. This is my anti-super-power... or joker power in the Wild Cards universe.
-
-
-
Warning: Make sure the Framework Laptop has been powered off for at least 5 minutes prior to Heat Sink and Fan removal. This component can be extremely hot.
-
Using the Framework T5 bit in the Framework Screwdriver, unscrew the two fasteners on the Fan first.
-
-
-
Next, unscrew the fasteners labeled 3, then 2, then 1 (in this order).
-
The screws will come loose after a few revolutions, they will remain captive (attached) in the fan.
-
-
-
Gently lift up the Heat Sink and Fan module and move it over slightly so that you can unplug the power cable. The thermal paste may be holding the module in place, you may have to apply a slight rotating motion to break the hold of the grease.
-
Using your fingernail, disconnect the Fan cable from the Mainboard by sliding it straight out.
-
The Heat Sink and Fan component is now fully detached.
-
-
-

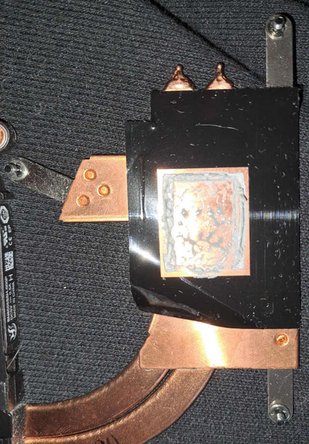

Before installing a brand new Heatsink and Fan module, be sure to carefully wipe off the excess thermal paste from the CPU using a clean, lint-free tissue, cloth, or cotton swab. The new module has new thermal paste on it.
-

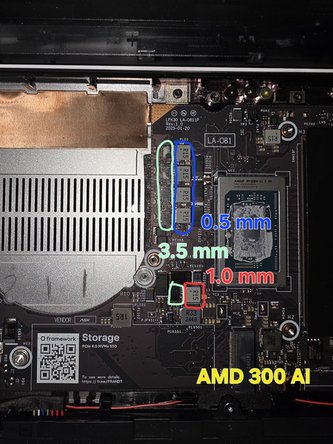

Look for any thermal pads that might have remained stuck on the Mainboard. They are light in color and very soft to the touch. If you notice any, gently peel them off.
-
Also make sure all of the thermal pads are properly in place in the new Heatsink. If a thermal pad is missing, there is risk of power regulators overheating.
Make sure to remove the protective plastic from the thermal pads and the plastic enclosure over the thermal paste.
Also there was some adhesive residue leftover when I removed the cover over the thermal paste, not sure how vigorously that should be cleaned off. Could be something to address here as well
-
-
-
Place the Heatsink and Fan module on the Mainboard aligning it carefully with the processor.
-
The new module comes with thermal paste so there is no need to any additional paste.
-
Make sure that the white or pink thermal pads stay in the spots they were originally on on the heatsink, and if any stayed stuck to the mainboard from the old heatsink, peel those off to avoid doubling them up.
-
-
-
Check the plug for the Fan, and note that there is a black dot on one side. The black dot should face upwards away from the Mainboard. With the black dot facing upwards, plug the cable back into the Mainboard by sliding it straight into the receptacle.
-
Make sure the plug is in the right orientation. Inserting it upside down can permanently damage the receptacle.
-
Starting with the fastener slot marked 1 on the Heatsink, start screwing the fasteners back into place using the T5 bit in the Framework Screwdriver. Next fasten number 2, followed by 3.
-
Be sure to not over tighten the fasteners.
-
Screw the two fasteners on the Fan back into place.
-
Be sure to not over tighten the fasteners.
-
The Heatsink and Fan module is now fully installed.
I think I might have screwed up the plug in on the power supply during this step :/ I tried seating it with a normal amount of pressure (just with my finger, guiding it with some thin-tipped tweezers), and it wasn't turning on when I finished up and closed up my laptop. So I then used some more pressure to get it seated normally, but it still didn't turn on. I tried a few more ways of plugging it in and out, making sure the pins are aligned, but no dice.
I even tried putting the old fan assembly back in (it wasn't completely broken, just having noise/efficiency issues), but the old assembly no longer turns on either.
Not sure how to proceed. Trying to troubleshoot how to fix the fan port :/
As many new (and experienced..) computer/device diy/modders/builders can (..often..) manage to (easily) strip fasteners and/or their mount points, I suggest including a fixed torque screwdriver(s). A universal/standardized torque req for all mount points would also be a pretty neat (marketable) 'innovation' for a DIY computer. If not feasible, maybe standardize to 2 or 3 torque values and include those drivers.
-
-
-
Before closing up the laptop, make sure that the Touchpad end of the Touchpad Cable is fully seated in the receptacle.
-
The cable should be inserted far enough that the white line almost touches the receptacle.
-
If it is not inserted far enough, you'll need to flip up the black latch on the other side of the connector, slide the cable in further, and then close the black latch again.
-
-
-
Flip the Input Cover over the Bottom Cover so that the keyboard is facing up and attach it to the Bottom Cover by aligning the top and bottom edges of both covers.
-
Tip: The covers are magnetic and should fit into one another easily. If you feel any resistance simply lift the Input Cover up and try again.
-
-
-
Close the Framework Laptop and turn it upside down to reveal the five fasteners on the Bottom Cover.
-
Using the T5 bit in the Framework Screwdriver, screw all 5 fasteners back into the Bottom Cover.
-
Be sure to not over-tighten the fasteners.
-
