Introduction

On the earliest Framework Laptops that went out in Batch 1 and early in Batch 2, we found a manufacturing issue on the Touchpad that could result in the Touchpad Cable shorting if it gets misaligned in the receptacle. We’ve added steps in every guide noting to double check the cable alignment, but a more permanent fix is to apply a piece of tape to prevent movement. This guide walks through the steps to do that.

Parts

    • Power off the Framework Laptop by navigating to the Windows icon on the bottom left and clicking on "Power" followed by "Shut down," or if on Linux, the equivalent action there.

  1. Unplug your power cable from the USB-C Expansion Card in your Framework Laptop.
    • Unplug your power cable from the USB-C Expansion Card in your Framework Laptop.

    • Close the lid on your Framework Laptop and place it upside down on a soft, non-marring surface, such as the bag that it shipped in.

    • Using the T5 bit in the Framework Screwdriver, unscrew the 5 fasteners on the Bottom Cover. These fasteners will remain attached in the Bottom Cover so that you do not lose them.

    • The fastener on the bottom left (circled in red) will not unscrew as far as the others, as it is acting as a lifter for the Input Cover.

    • You'll hear this fastener start clicking as you rotate when it is unscrewed far enough.

    • Do not use a powered tool for these steps, as this will likely result in damage to the fasteners.

    • Flip the Framework Laptop back over and open the lid to around 120 degrees.

    • Important: Pull the Input Cover off carefully as it is still attached to the Mainboard via the Touchpad Cable. You don't need to disconnect this cable to do most repairs. You can just flip the Input Cover over. If you do want to disconnect it though, make sure to disconnect the Mainboard side using the finger loop over the orange label.

    • The bottom right corner of the Input Cover lifts up when the five fasteners are properly unscrewed from the previous step. You should not have to use any excessive force to remove the Input Cover.

    • Carefully lift the cover up from the bottom right corner. If you need to, you can use the spudger end of the Framework Screwdriver to lift it as well. Lift the Input Cover off the Mainboard, flip it over (keyboard side down), and place it about halfway on the Bottom Cover.

    • Be sure not to put too much force on the Touchpad Cable when doing this.

    • If the LEDs on the left and right sides of the system are flashing red when you lift off the cover, it means the system is still powered on. Make sure your power cable isn't plugged in and that you have shut down correctly.

    • Note that it may take up to 30 seconds after shutting down for the system to fully power off. Wait until the LEDs stop flashing before proceeding.

    • You should keep the Battery connector plugged in unless you need to replace the Battery, Mainboard, or Speakers. This connector is easy to accidentally damage, so it's better to not handle it.

  2. Disconnect the Touchpad Cable from the Mainboard by inserting your finger into the loop and pull directly upward using a slight amount of force. Once the Touchpad Cable is disconnected, remove the Input Cover away from the Mainboard. The Input Cover is now fully disconnected from the Bottom Cover.
    • Disconnect the Touchpad Cable from the Mainboard by inserting your finger into the loop and pull directly upward using a slight amount of force.

    • Once the Touchpad Cable is disconnected, remove the Input Cover away from the Mainboard.

    • The Input Cover is now fully disconnected from the Bottom Cover.

  3. Before taping the cable, make sure that the Touchpad end of the Touchpad Cable is fully seated in the receptacle. The cable should be inserted far enough that the white line almost touches the receptacle.
    • Before taping the cable, make sure that the Touchpad end of the Touchpad Cable is fully seated in the receptacle.

    • The cable should be inserted far enough that the white line almost touches the receptacle.

    • If it is not inserted far enough, you'll need to flip up the black latch on the other side of the connector, slide the cable in further, and then close the black latch again.

  4. Note, if your double-sided tape wasn't provided by Framework, it may be a different shape or color than what is in the image.  The instructions should remain the same though.  If you are bringing your own tape, we recommend a 12mmx12mm (about 0.5"x0.5") square of 3M 9495LE. Peel the paper or plastic backing film off of the bottom side of the piece of double sided tape. Lift up the Touchpad Cable carefully, and stick the piece of double sided tape onto the Touchpad cable in an area where it will only touch the metal bracket on the Touchpad when pressed back down.

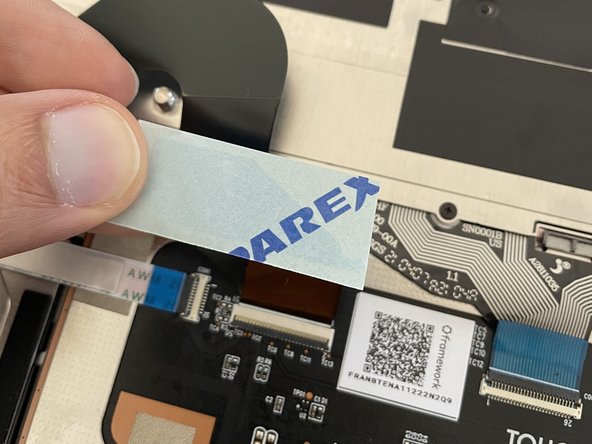

    • Note, if your double-sided tape wasn't provided by Framework, it may be a different shape or color than what is in the image. The instructions should remain the same though. If you are bringing your own tape, we recommend a 12mmx12mm (about 0.5"x0.5") square of 3M 9495LE.

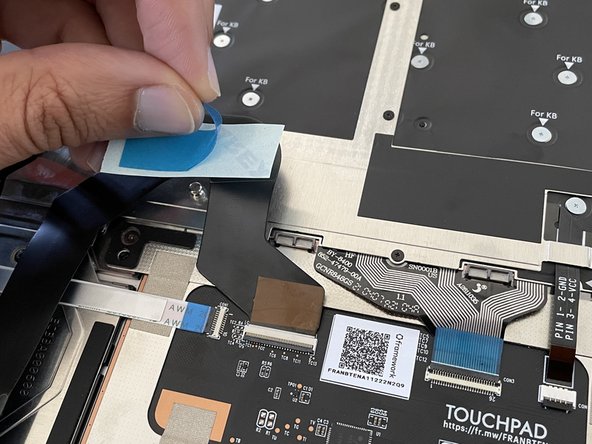

    • Peel the paper or plastic backing film off of the bottom side of the piece of double sided tape.

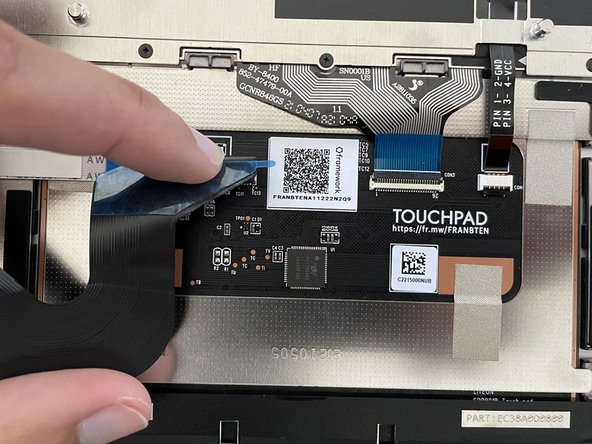

    • Lift up the Touchpad Cable carefully, and stick the piece of double sided tape onto the Touchpad cable in an area where it will only touch the metal bracket on the Touchpad when pressed back down.

    • Press on the tape to ensure it bonds well to the Touchpad Cable.

  5. Peel up the paper or plastic backing film on the tape. Making sure the Touchpad Cable is aligned, press it down onto the Touchpad, applying a little force to form a good bond.

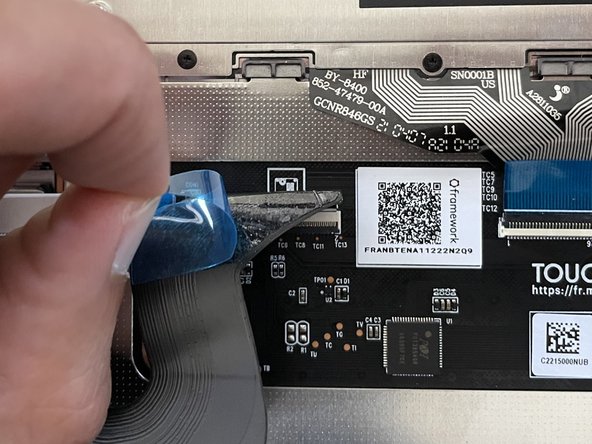

    • Peel up the paper or plastic backing film on the tape.

    • Making sure the Touchpad Cable is aligned, press it down onto the Touchpad, applying a little force to form a good bond.

  6. Using slight force, connect the Touchpad Cable by aligning it to the socket on Mainboard. You should hear it click into place once properly connected. Using slight force, connect the Touchpad Cable by aligning it to the socket on Mainboard. You should hear it click into place once properly connected. Using slight force, connect the Touchpad Cable by aligning it to the socket on Mainboard. You should hear it click into place once properly connected.
    • Using slight force, connect the Touchpad Cable by aligning it to the socket on Mainboard. You should hear it click into place once properly connected.

  7. Once the Touchpad cable is secured to the Mainboard, flip the Input Cover over the Bottom Cover so that the keyboard is facing up and attach it to the Bottom Cover by aligning the top and bottom edges of both covers. Tip: The covers are magnetic and should fit into one another easily. If you feel any resistance simply lift the Input Cover up and try again. Tip: The covers are magnetic and should fit into one another easily. If you feel any resistance simply lift the Input Cover up and try again.
    • Once the Touchpad cable is secured to the Mainboard, flip the Input Cover over the Bottom Cover so that the keyboard is facing up and attach it to the Bottom Cover by aligning the top and bottom edges of both covers.

    • Tip: The covers are magnetic and should fit into one another easily. If you feel any resistance simply lift the Input Cover up and try again.

  8. Close the Framework Laptop and place it upside down to reveal the fasteners on the Bottom Cover. Using the T5 bit in the Framework Screwdriver, screw all 5 fasteners back into the Bottom Cover.
    • Close the Framework Laptop and place it upside down to reveal the fasteners on the Bottom Cover.

    • Using the T5 bit in the Framework Screwdriver, screw all 5 fasteners back into the Bottom Cover.

    • Be sure to not over-tighten the fasteners.
