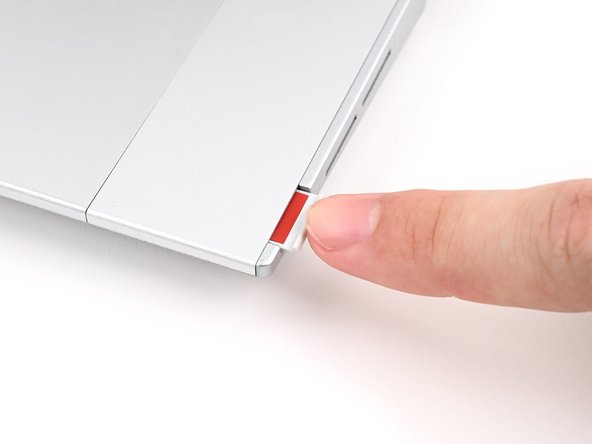

    • In order to remove the Input Modules from the Framework Laptop 16, begin by opening the Input Deck Latches on each side of the Laptop.

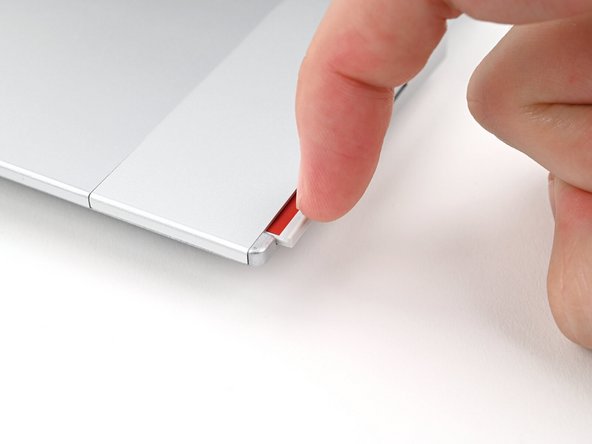

    • When the latches are open you can see the red printed on the latch.

    • To remove the Touchpad Spacers, slide them down and then they will lift away easily.

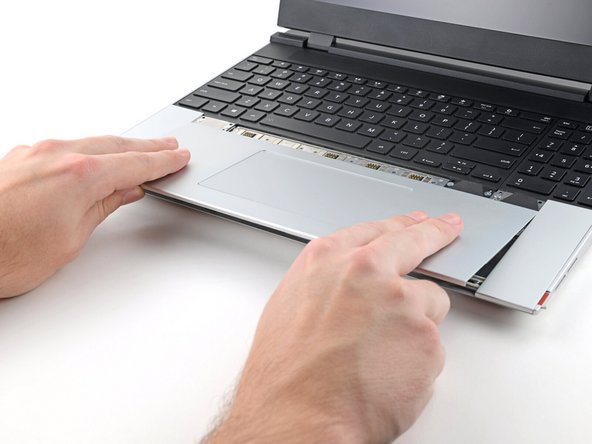

    • If there is resistance, make sure that the Input Deck Latches are open (see previous step).

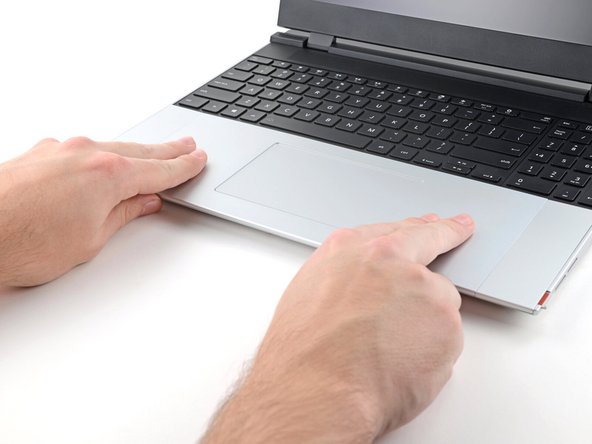

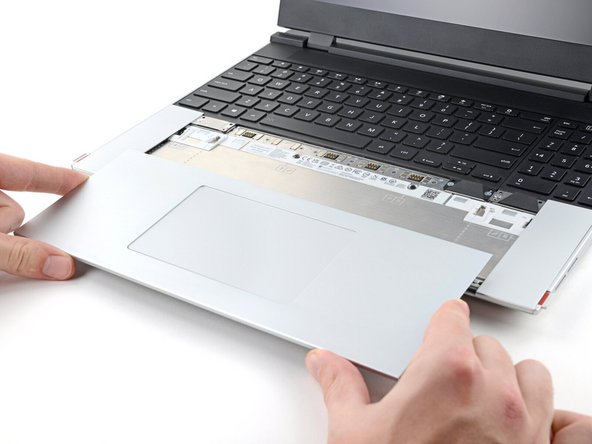

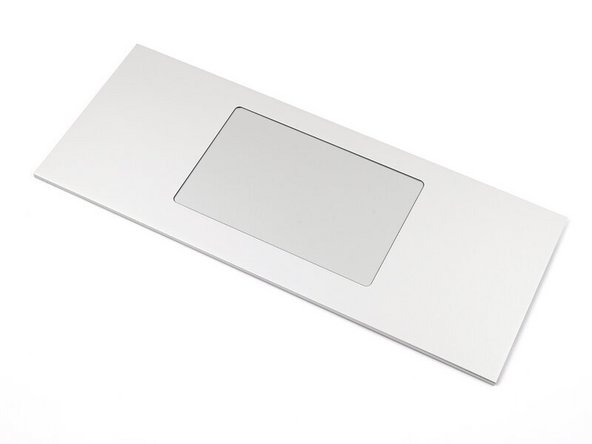

    • After removing the Spacers, the Touchpad module can be removed in the same way. Gently slide it downwards from both sides and then lift away as shown.

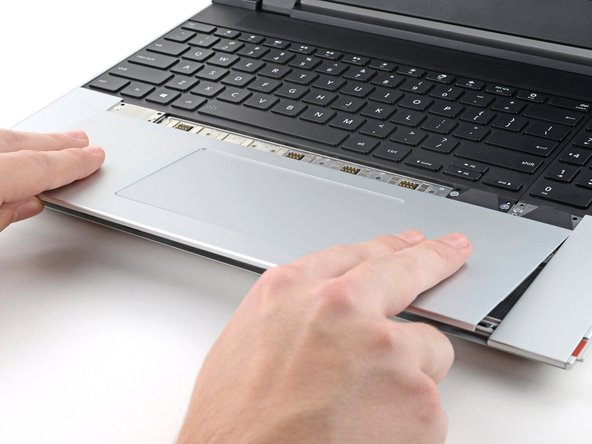

    • Place the Touchpad Module flat, slightly below the Keyboard as shown.

    • Like the Keyboard, you can confirm it is properly aligned by lining it up to the dashed lines on the Mid Plate.

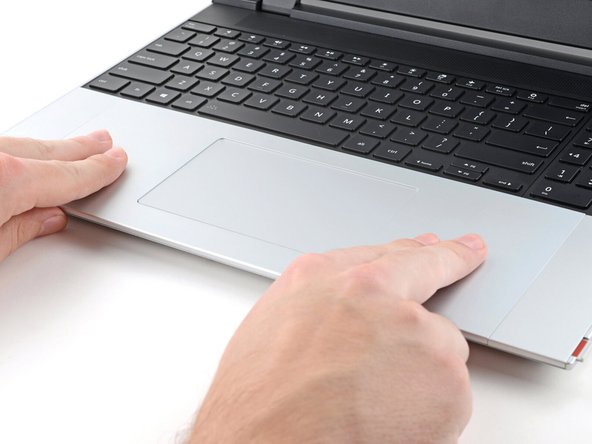

    • Applying gentle downward pressure to keep the Touchpad module flat, slide it up into place.

    • Remember that the Input Deck Latches should still be open at this point, otherwise the Touchpad Module won't slide on.

    • The Touchpad Module can be installed either directly below the Keyboard or offset by one space to the right. For example, the Keyboard can have the Touchpad below it, or the Keyboard can be left-aligned while the Touchpad is centered.

    • Just like installing the Touchpad module, place the Touchpad Spacers flat on the Input Deck, slightly below the Keyboard or Spacers above.

    • Applying gentle pressure, slide the Touch Module Spacers into place.

    • With the Touchpad Module Spacers installed there should now be no empty spaces on the Input Deck.

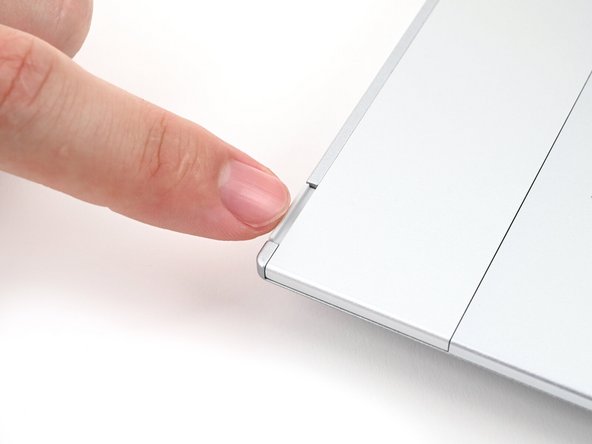

    • Once all Input Modules are installed, close both Input Deck Latches to secure them in place.
