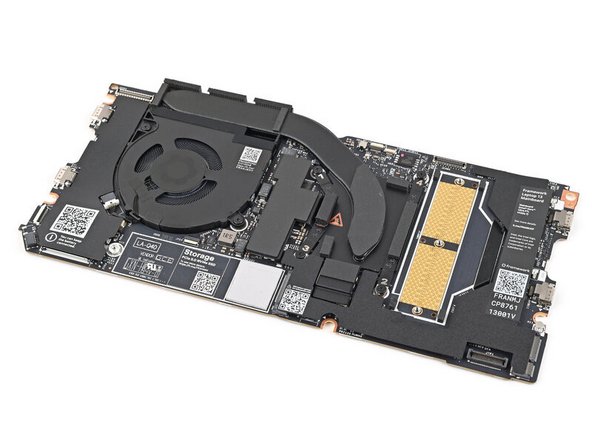

Mainboard

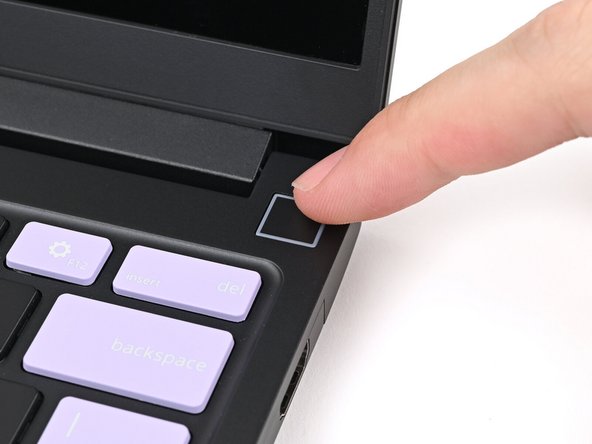

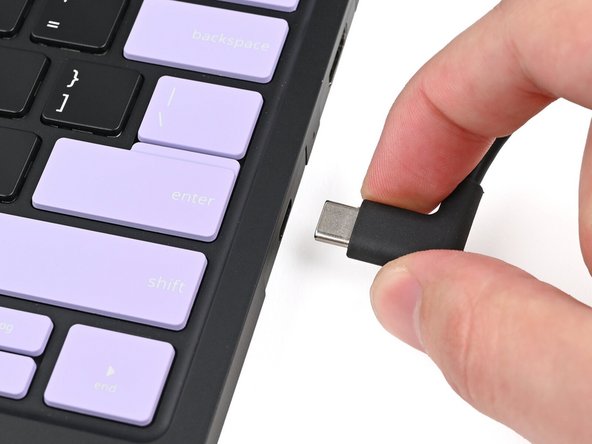

Unplug all cables and fully shut down your laptop from the OS.

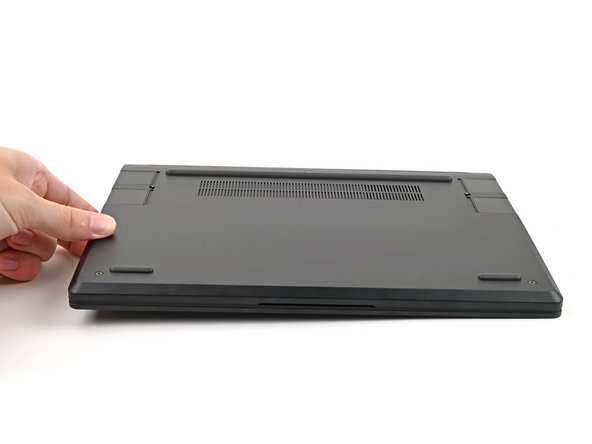

Close the laptop and flip it over.

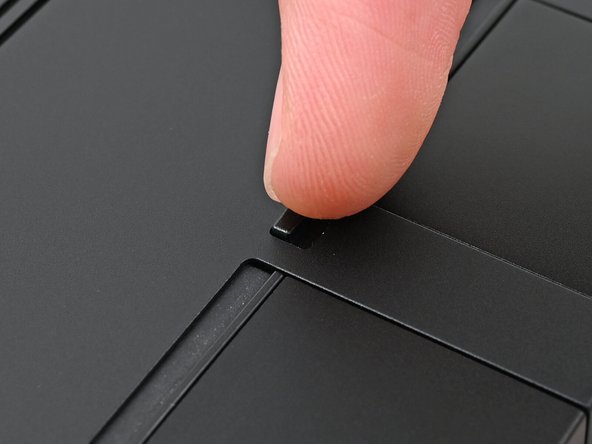

Use your finger to flip the Expansion Card latches into the unlocked position.

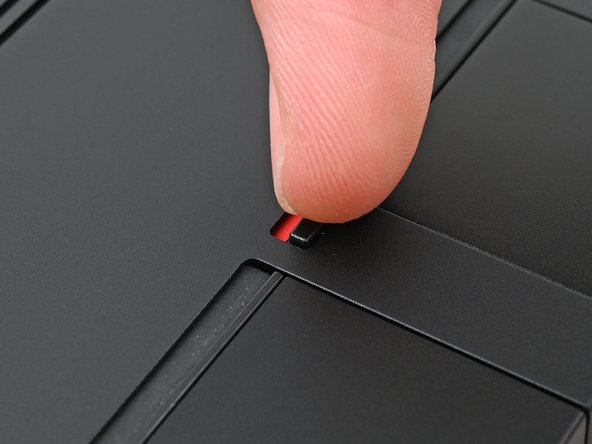

The latch displays a red bar when it's unlocked.

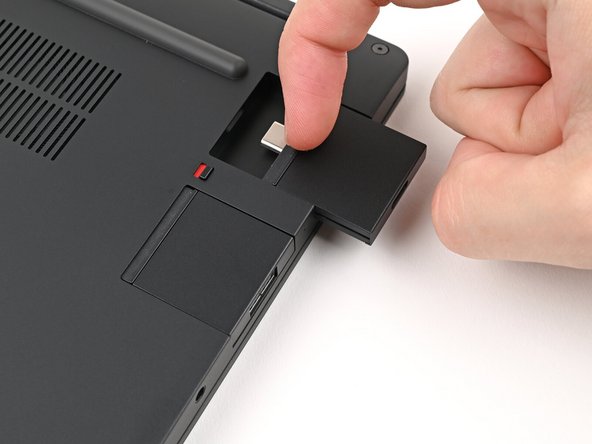

Grip the lip of the Expansion Card with your fingers.

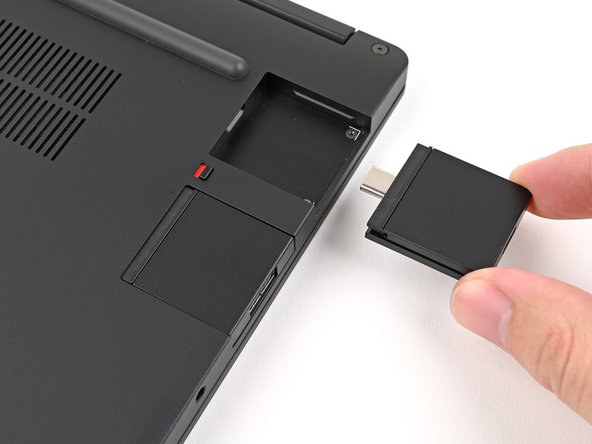

Pull the Expansion Card out of its slot and remove it.

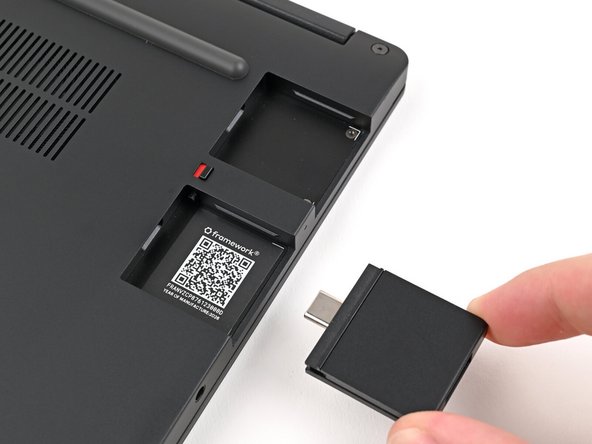

This might take some initial force. If you're having trouble, make sure the locking tab is properly unlocked.

Repeat for all remaining Expansion Cards.

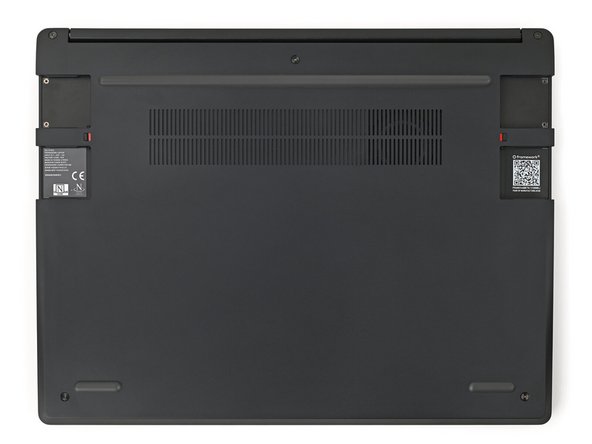

Use your Framework Screwdriver to loosen the five captive T5 Torx screws securing the Input Cover.

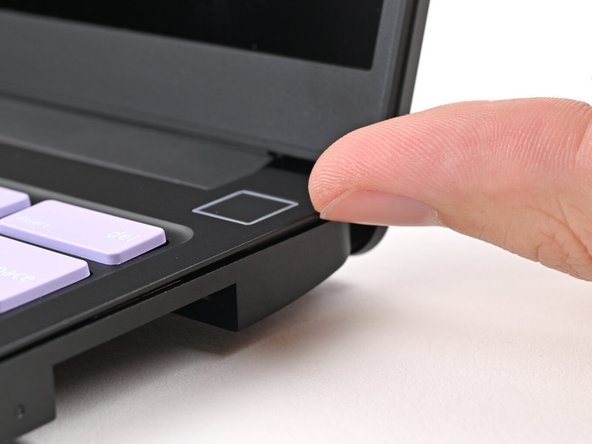

Flip over your laptop and open it.

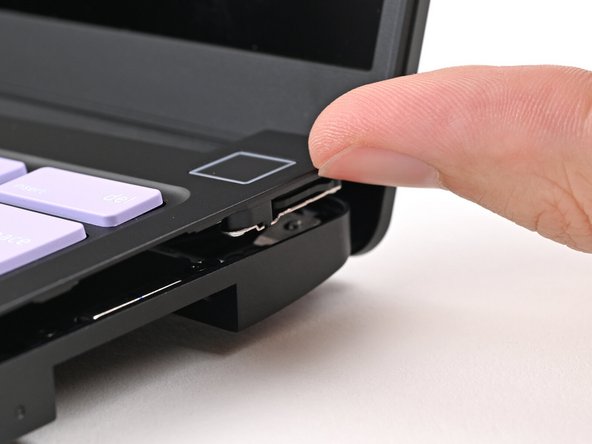

Use your fingers to lift the Input Cover up and release it from its magnets.

Don't fully remove the Input Cover yet, as it's still attached by the Touchpad Cable.

If you're having trouble lifting the Input Cover, you can leverage the gap at the bottom right corner to get your fingers fully under it.

Flip the top of the Input Cover so the Keyboard is facing down.

Rest the Input Cover over the Battery, making sure the Touchpad Cable isn't being strained.

If the LEDs on the left and right sides of the Mainboard are flashing, then your laptop is still powered on. Make sure your laptop is completely powered off before continuing.

Insert your finger into the Touchpad Cable press connector loop.

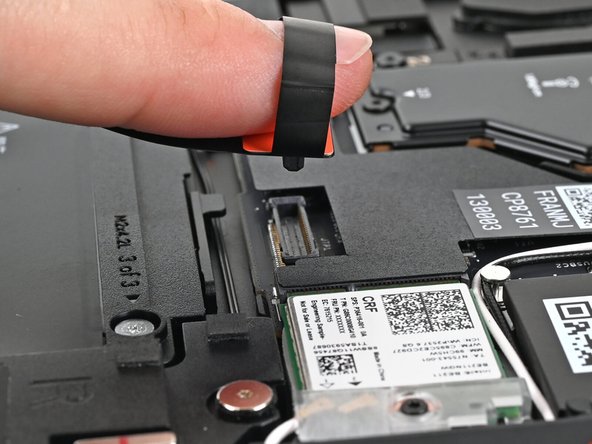

Lift up to disconnect the Touchpad Cable from the Mainboard.

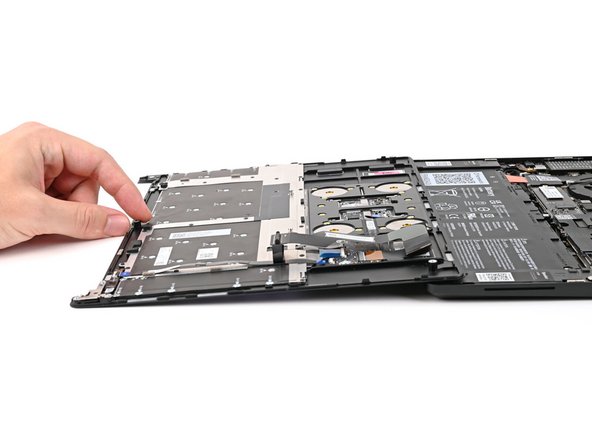

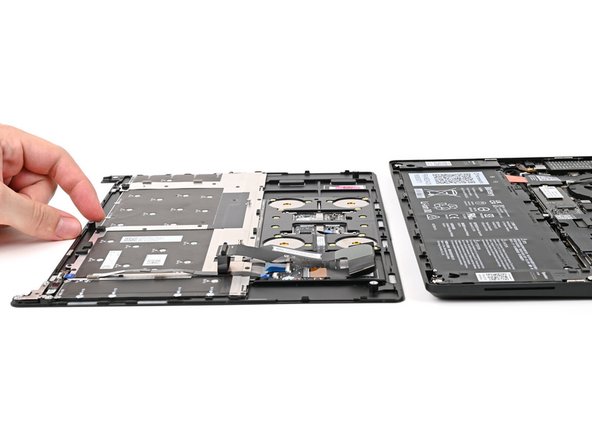

Remove the Input Cover.

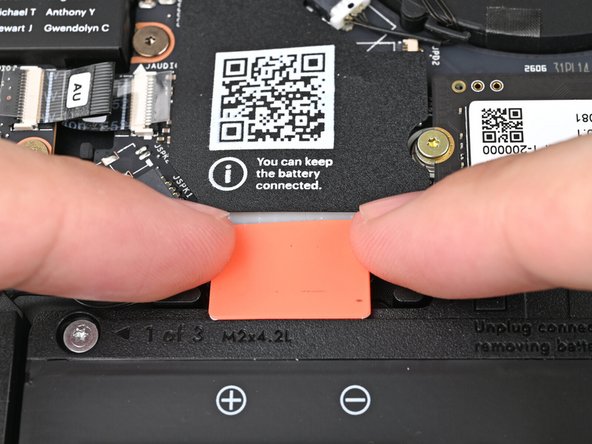

When disconnecting the Battery, make sure you slide its connector straight out of its socket or else you risk bending the socket's pins.

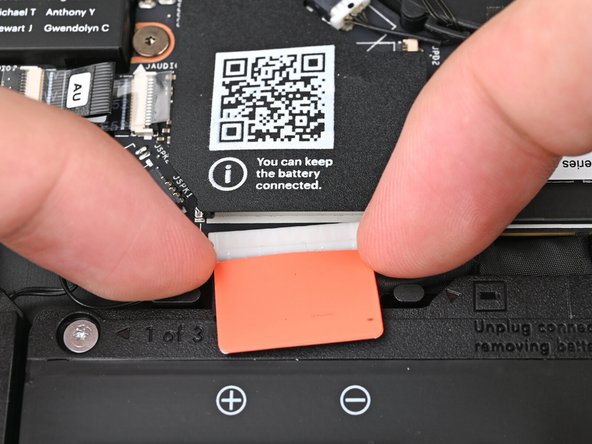

Use your fingers to grip the edges of the Battery connector and slide it straight out of its socket to disconnect the Battery.

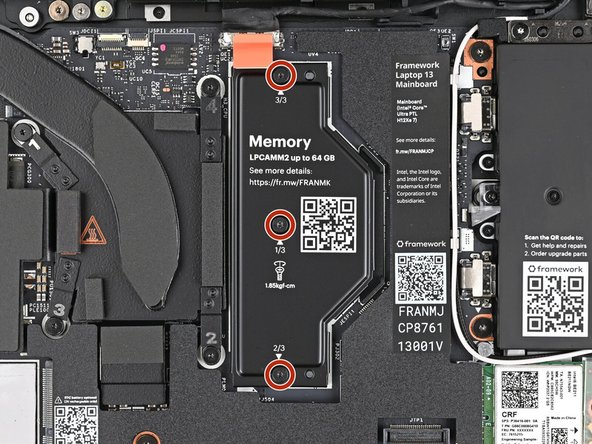

If you're removing a LPCAMM2 module, follow the next three steps. If you're installing DDR5 SO-DIMM modules, skip here.

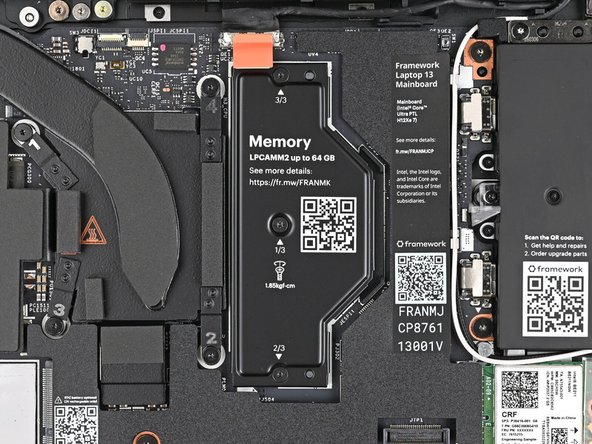

Use your Framework Screwdriver to loosen the captive T5 Torx screws securing the LPCAMM2 Memory Cover in reverse order from 3–1.

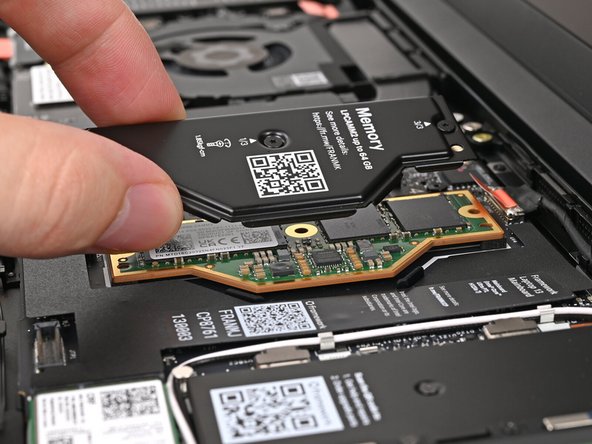

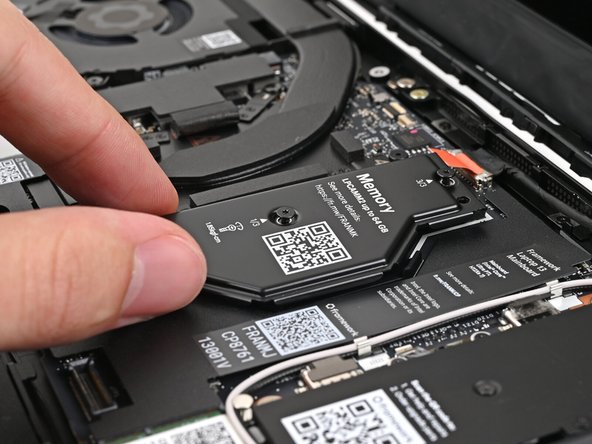

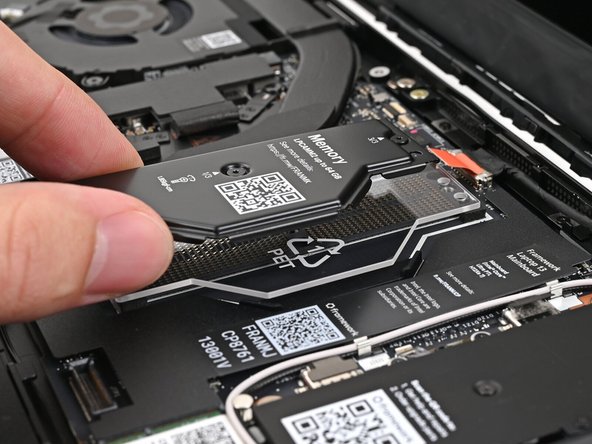

Lift the LPCAMM2 Memory Cover straight off the memory and remove it.

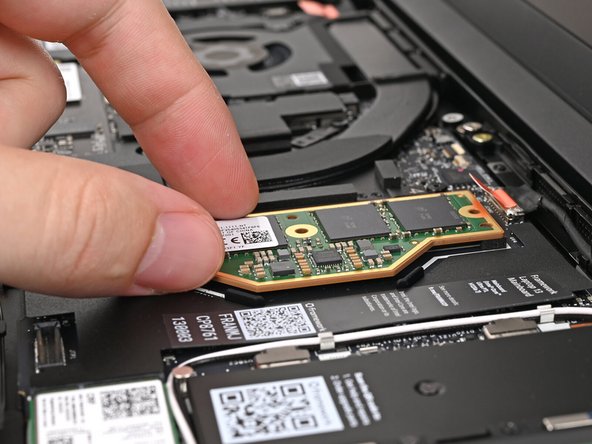

Grip the LPCAMM2 module by its edges and lift it straight off its alignment pegs to remove it.

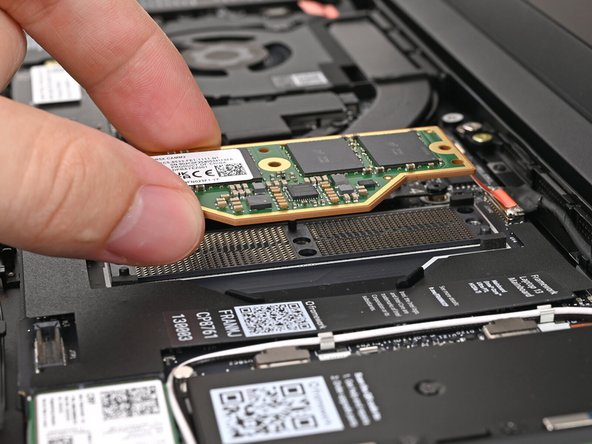

Avoid touching the Interposer below the module. If the Interposer accidentally shifts, grab it by its edges to place it back into its alignment pegs.

Make sure there's no dust or debris on top of the Interposer before continuing.

While holding up the black flap covering the left memory module, push the two metal arms on each side of the module outward until they disengage and the module pops up at a shallow angle.

Slide the memory module out of its socket and remove it.

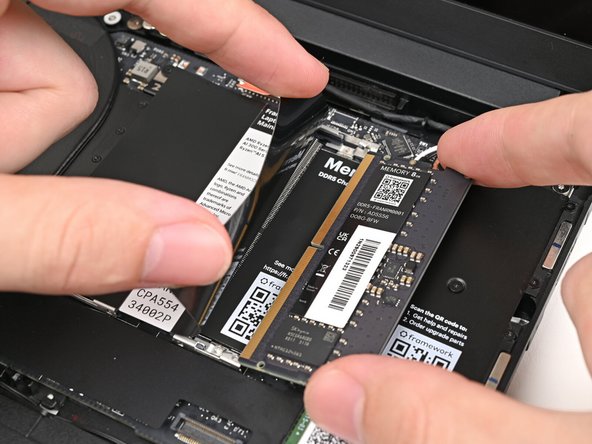

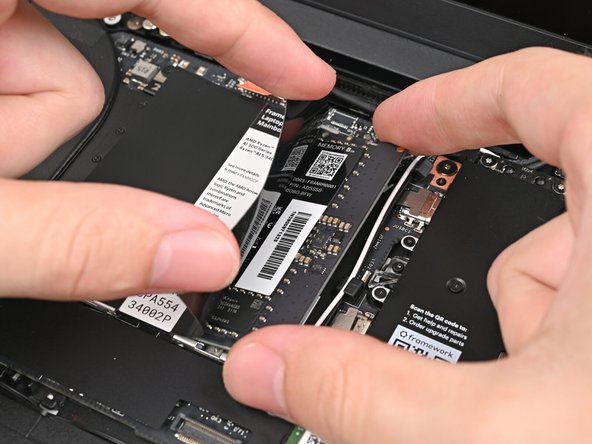

Repeat the previous step for the right module.

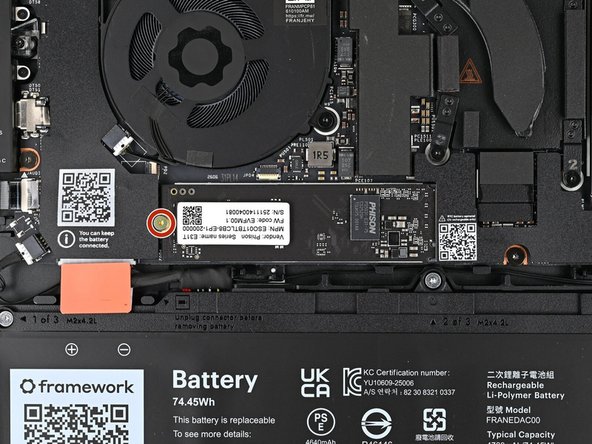

Use your Framework Screwdriver to remove the 3.0 mm‑long T5 Torx screw securing the SSD.

The SSD might pop up at a shallow angle when you remove the screw.

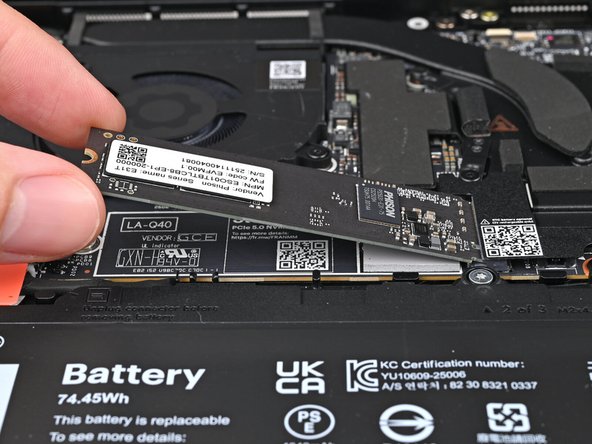

Grip the end of the SSD with the screw hole and slide it out of its socket.

Remove the SSD.

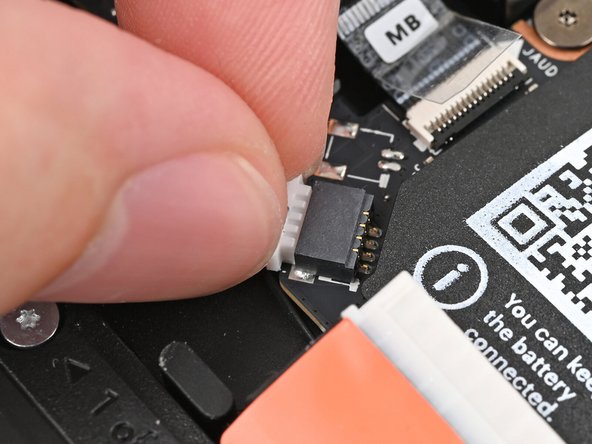

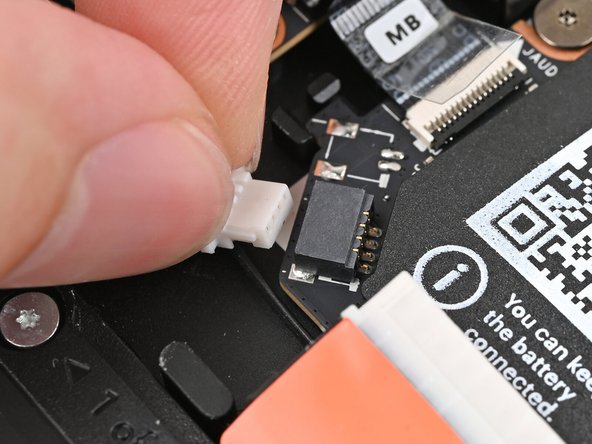

Use your fingers to grip the edges of the Speaker cable connector.

Pull the connector straight out of its socket to disconnect it.

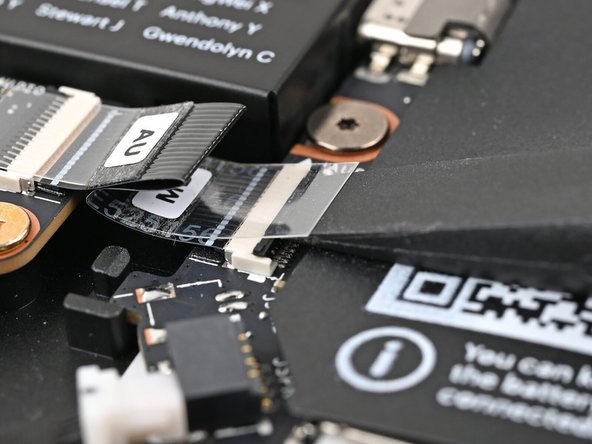

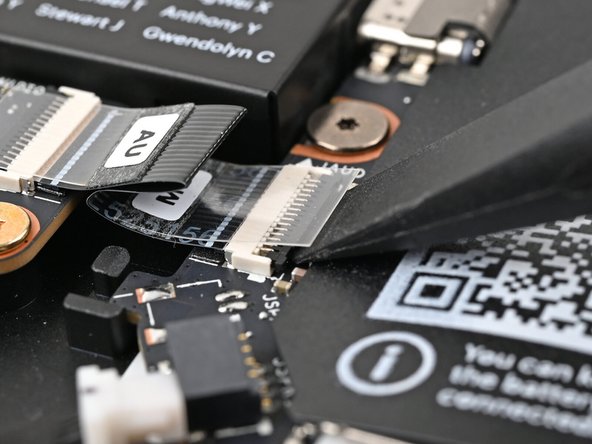

Use the flat end of your Framework Screwdriver, or a clean fingernail, to lift up the locking tab on the Audio Board ZIF connector on the Mainboard.

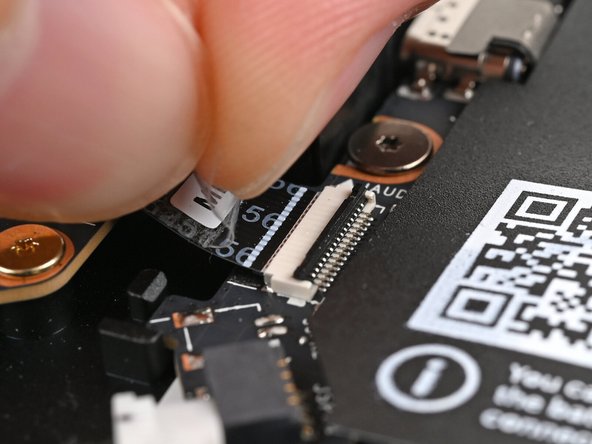

Use your fingers to lightly grip the Audio Board cable and slide it straight out of its socket.

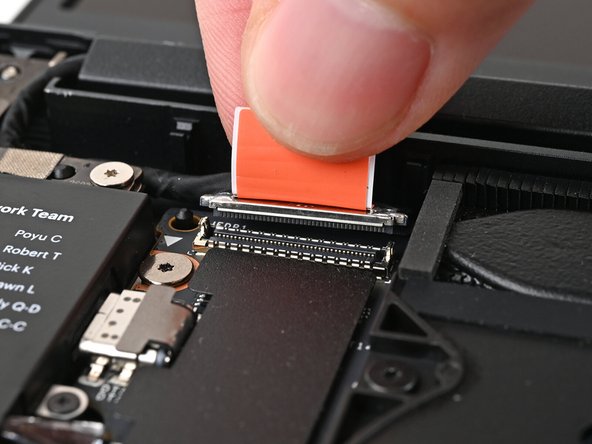

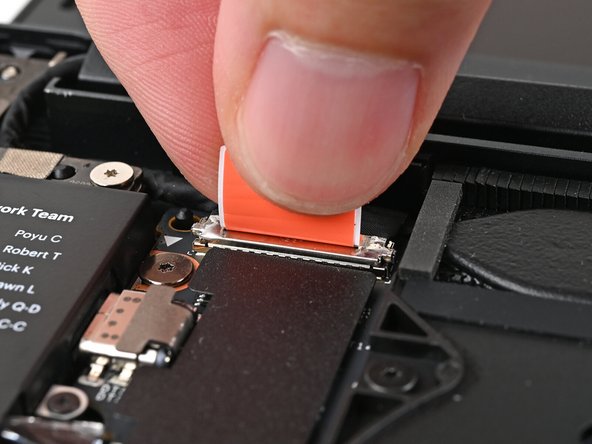

Grip the Display eDP Cable connector by its pull tab and lift up to disconnect it.

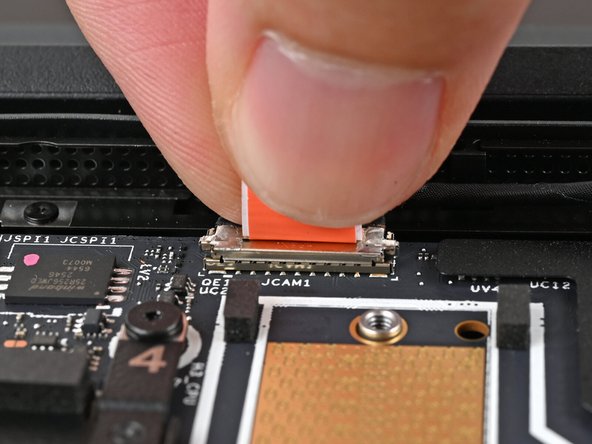

Repeat the previous step for the Webcam Cable connector.

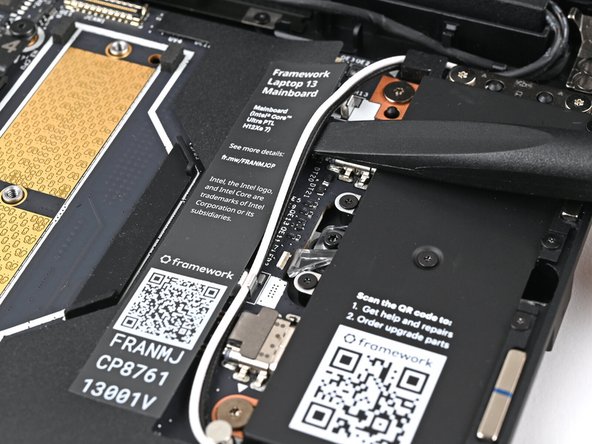

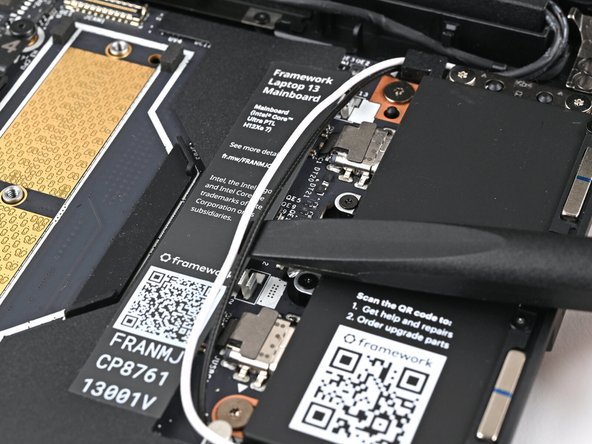

Use your fingers or the flat end of the Framework Screwdriver to lift the two Antenna Cables out of their clips on the Mainboard.

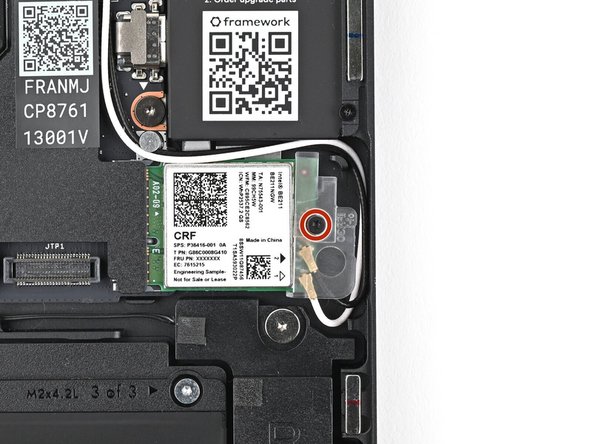

Use your Framework Screwdriver to loosen the captive T5 Torx screw securing Wi-Fi module.

The module might pop up at a shallow angle when you loosen the screw.

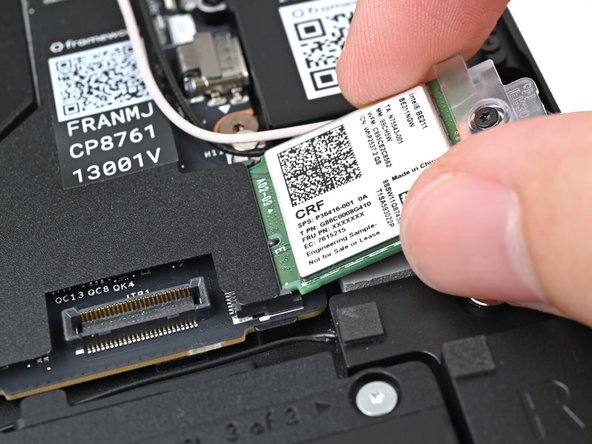

Grip the end of the Wi-Fi module with the screw hole and slide it out of its socket.

Don't pull the module too far from its socket, as it's still connected by two cables.

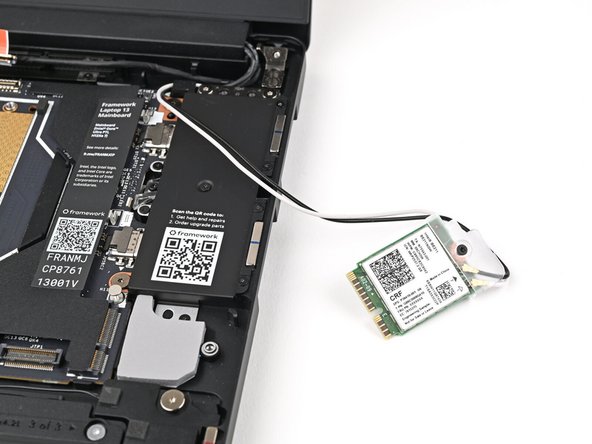

Keep the plastic bracket attached to the module to prevent the cables from disconnecting.

Position the Wi-Fi module to the right of the laptop to keep it out of the way of the Mainboard.

Use your Framework Screwdriver to remove the five 1.5 mm‑long T5 Torx screws securing the Mainboard.

Since these screws aren't captive, put them in a safe place.

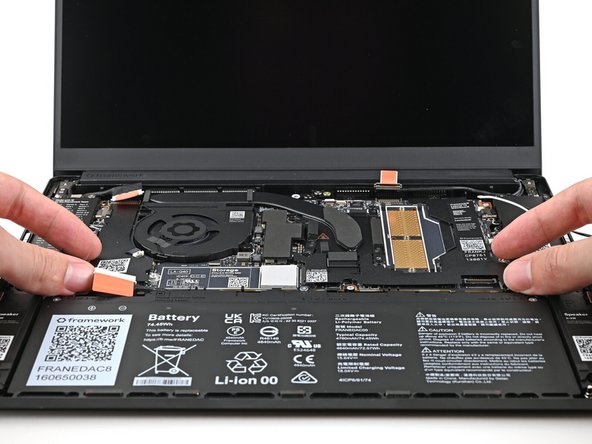

Use your fingers to lift the bottom edge of the Mainboard enough to grip its edges.

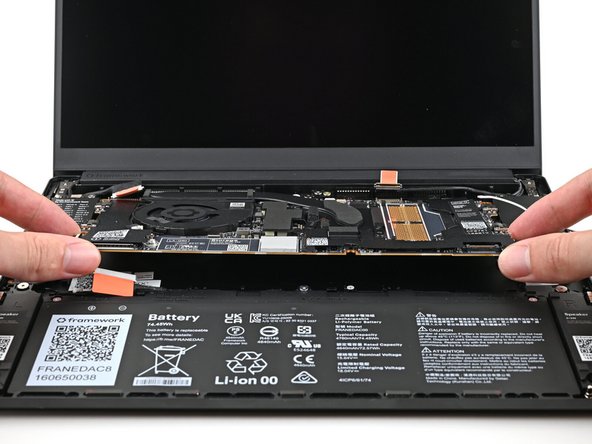

Lift the Mainboard off its alignment pegs and remove it.

Congratulations on completing disassembly! The remaining steps will show how to reassemble your Framework Laptop.

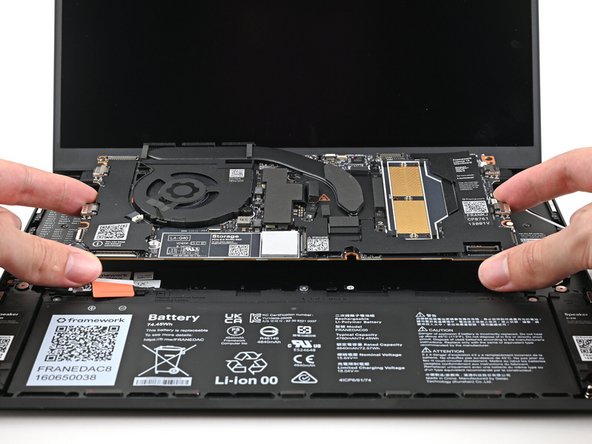

Grab the Mainboard by its edges and place it into the laptop and onto its alignment pegs.

Make sure all of the cables are above the Mainboard before continuing. Refer to this image for where the cables are located.

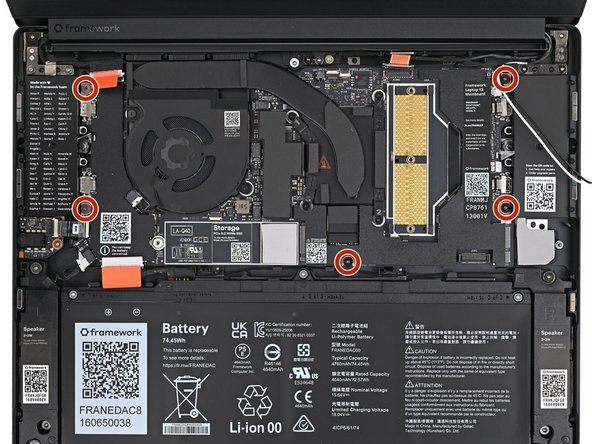

Use your Framework Screwdriver to install the five 1.5 mm‑long T5 Torx screws securing the Mainboard.

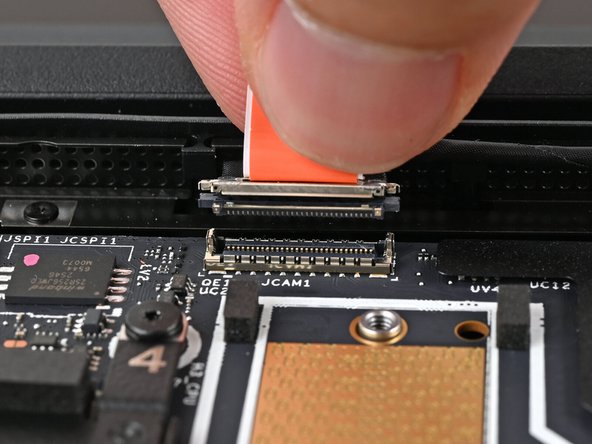

Press the Webcam Cable connector straight down into its socket to connect it.

Repeat the previous step for the Display eDP Cable.

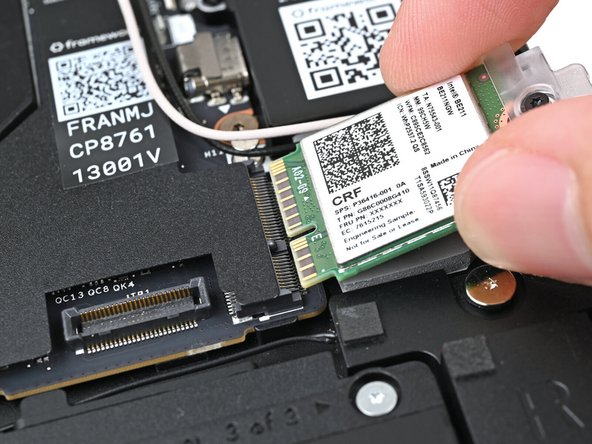

Hold the Wi-Fi module by its edges. Don't touch the gold contacts with your fingers. If you do, wipe the contacts with a clean, lint-free cloth to remove any finger oils.

Align the Wi-Fi module's gold contacts and notch with the socket on the Mainboard.

Insert the Wi-Fi module into the socket at a shallow angle. The gold contacts should mostly be covered by the socket.

The Wi-Fi module fits into the socket in one orientation. If it doesn't fit, try flipping the module.

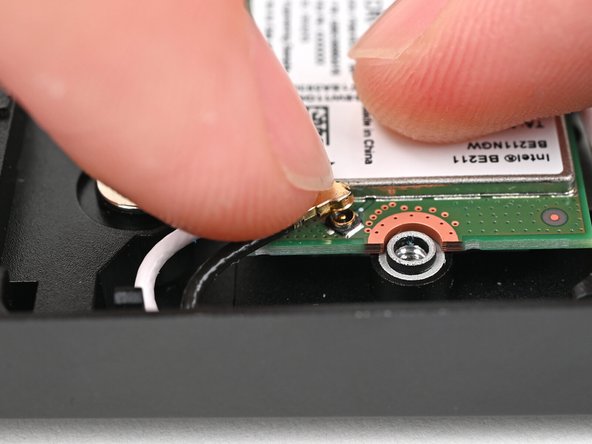

If the Antenna Cables got accidentally disconnected, follow this step to reconnect them. Otherwise, skip this step to continue the guide normally.

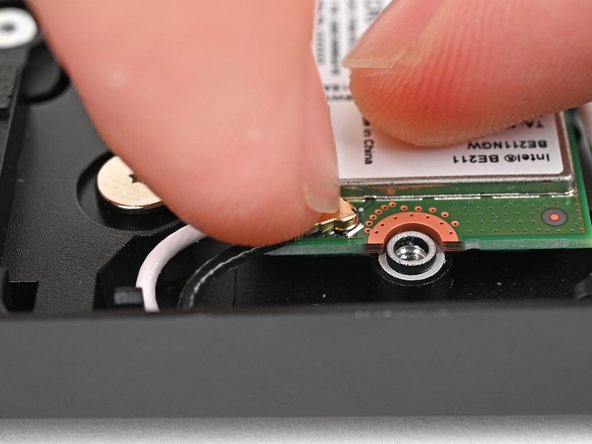

Hold the Wi-Fi module down with your finger.

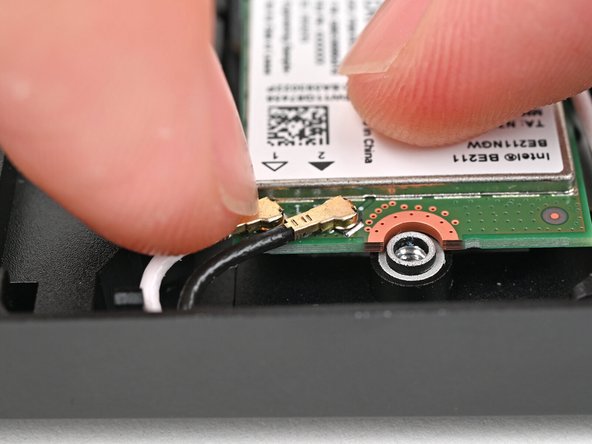

Position the black antenna cable connector over the left Wi-Fi module's coaxial socket.

If you're unsure which cable goes where, refer to the arrows on the Wi-Fi module for which color cable matches with its connector.

Tweezers can help position the connector.

Use your finger to press the connector into place. You should feel a faint click, and the cable will stay attached to the socket by itself.

These connectors are very delicate! If the connector doesn't feel like it's clicking in place, reposition the connector and try again.

Repeat the procedure with the white antenna cable.

Use your Framework Screwdriver to tighten the captive T5 Torx screw securing Wi-Fi module.

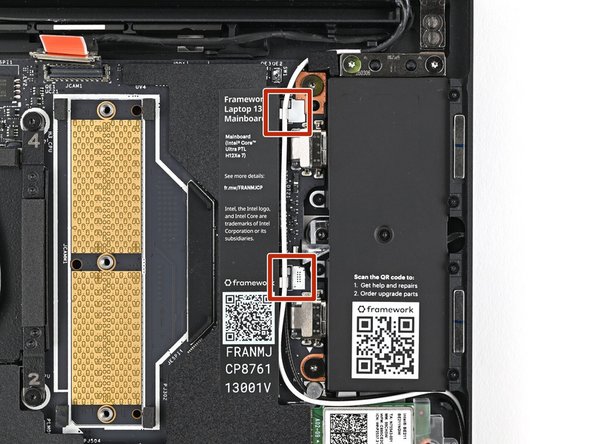

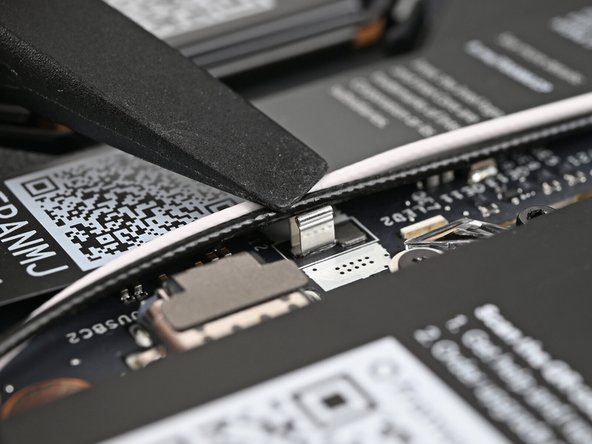

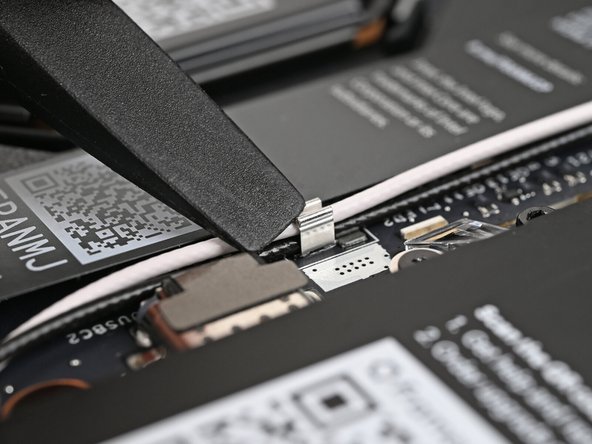

Use the flat end of your Framework Screwdriver to press the two Antenna Cables into their clips on the Mainboard.

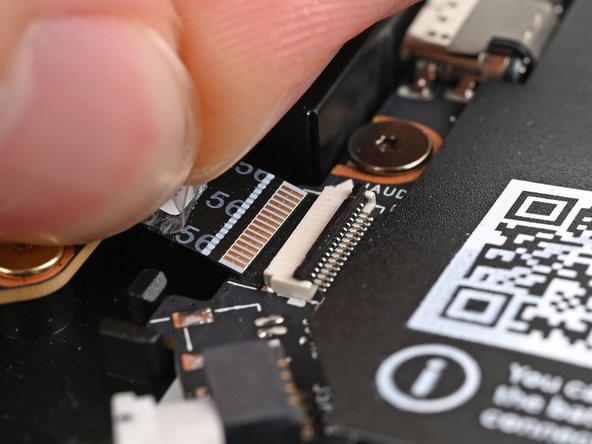

Slide the Audio Board cable straight into its socket.

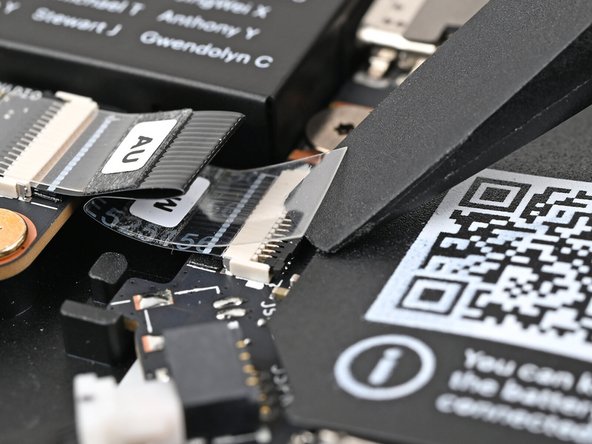

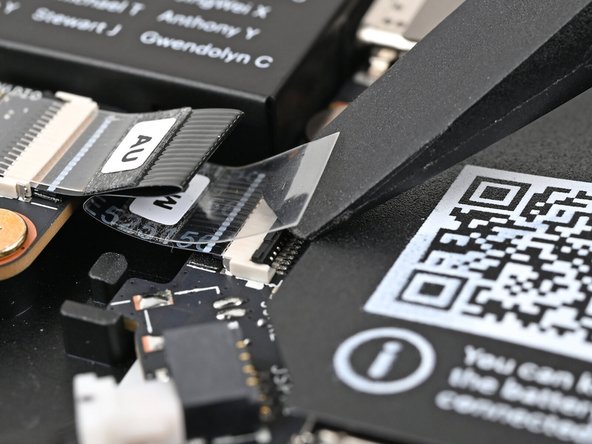

Use the flat end of your Framework Screwdriver, or a clean fingernail, to press down the locking tab on the Audio Board ZIF connector.

Slide the speaker connector straight into its socket.

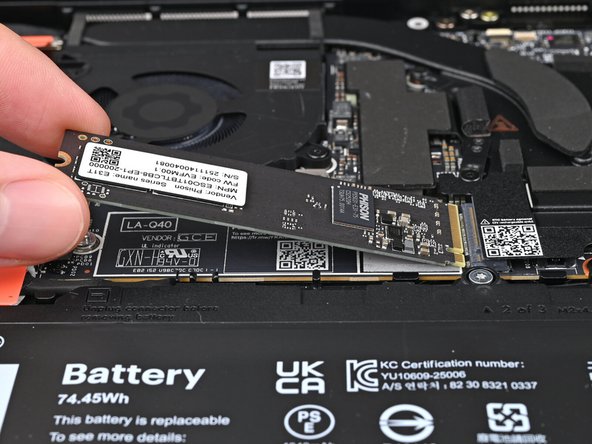

Hold the SSD by its edges. Don't touch the gold contacts with your fingers. If you do, wipe the contacts with a clean, lint-free cloth to remove any finger oils.

Insert the SSD into the socket at a shallow angle. The gold contacts should mostly be covered by the socket.

The SSD fits into the socket in one orientation. If it doesn't feel like it fits, try flipping the module.

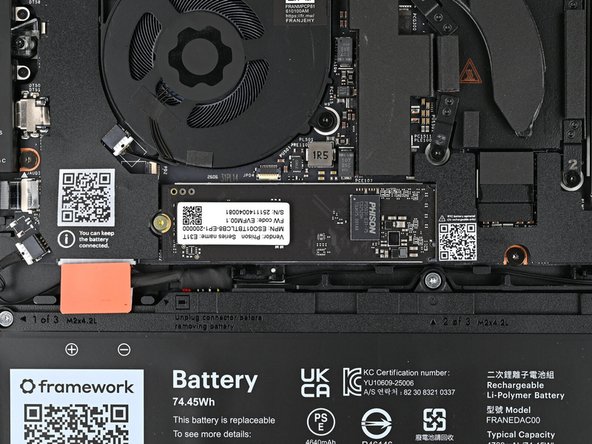

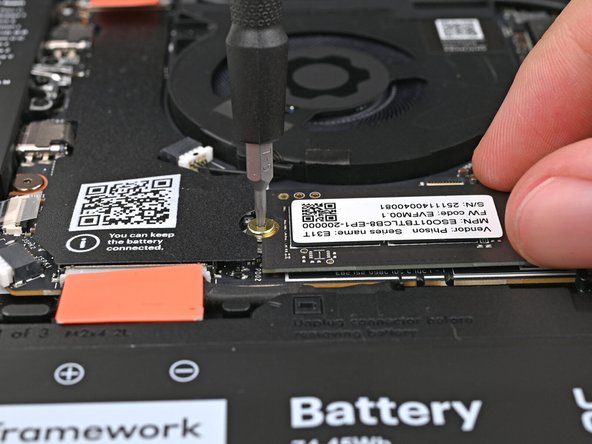

While holding the SSD flat to the Mainboard, use your Framework Screwdriver to install the 3.0 mm‑long T5 Torx screw securing the SSD.

If you're installing a LPCAMM2 module, follow the next six steps. If you're installing DDR5 SO-DIMM modules, skip here.

Use your Framework Screwdriver to loosen the captive T5 Torx screws securing the LPCAMM2 Memory Cover in reverse order from 3–1.

Lift the LPCAMM2 Memory Cover straight off the memory and remove it.

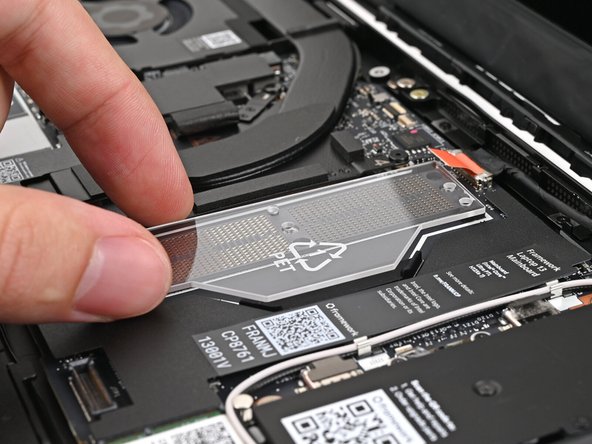

If present - remove the LPCAMM2 Memory Spacer and recycle it.

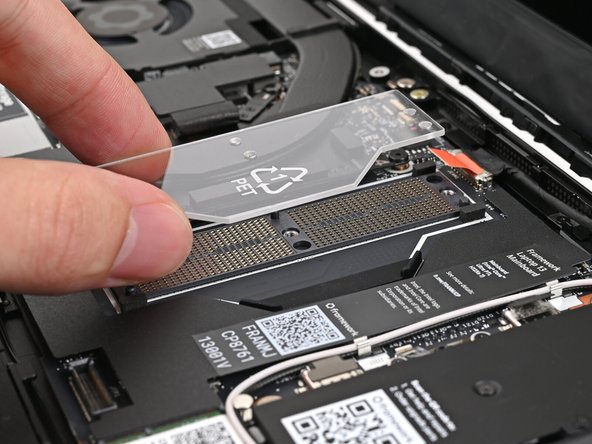

Avoid touching the Interposer below the Spacer. If the Interposer accidentally shifts, grab it by its edges to place it back into its alignment pegs.

Make sure there's no dust or debris on top of the Interposer before continuing.

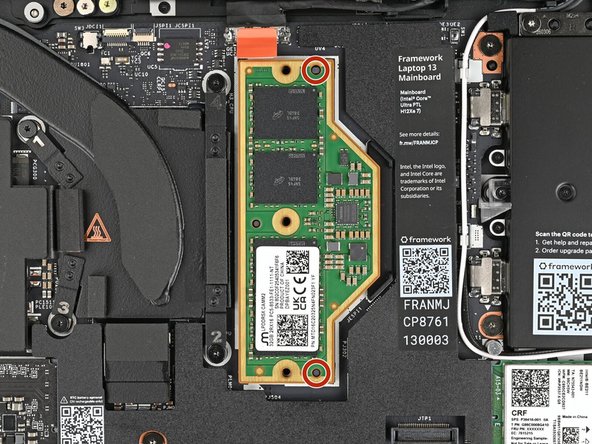

Place the LPCAMM2 module on top of the Interposer, making sure it slots into its alignment pegs.

Place the LPCAMM2 Memory Cover on top of the memory, making sure its screws align with the screw holes.

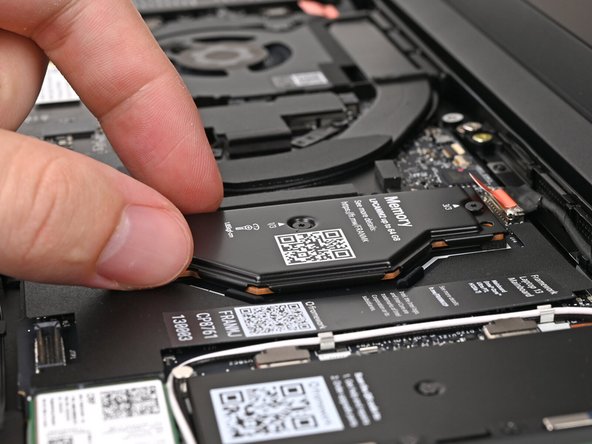

The cover should lay flat when aligned properly.

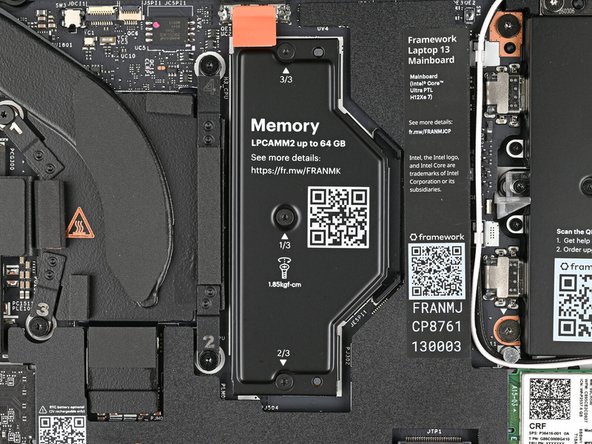

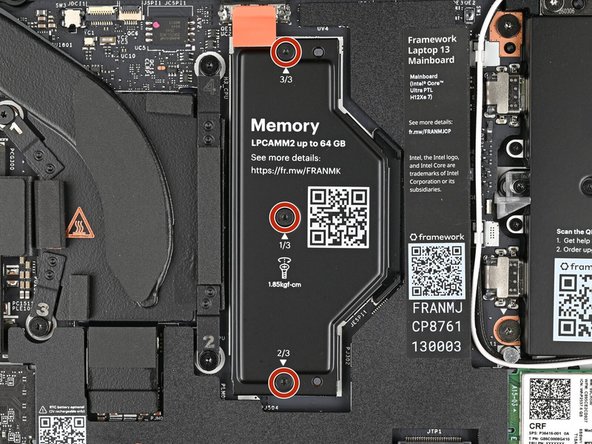

Use your Framework Screwdriver to tighten the captive T5 Torx screws securing the LPCAMM2 Memory Cover in order from 1–3.

Make sure the screws are snug enough to create proper contact between the memory and the Mainboard.

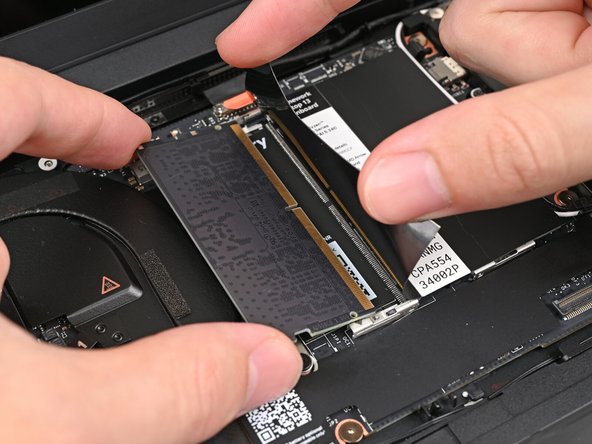

Hold the memory module by its edges. Don't touch the gold contacts with your fingers. If you do, wipe the contacts with a clean, lint-free cloth to remove any finger oils.

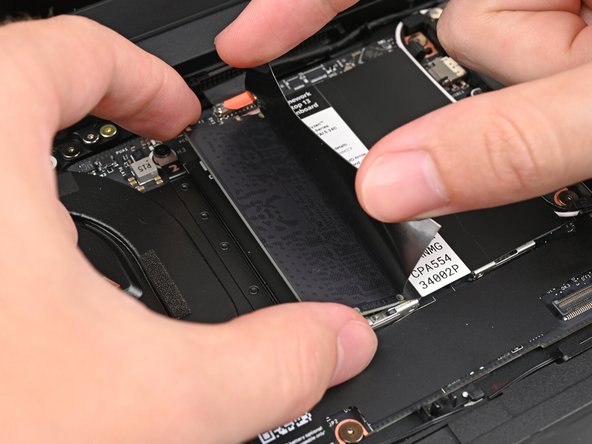

While holding up the black flap covering the left memory module, orient the module with its label facing down and align the gold contacts with the left socket.

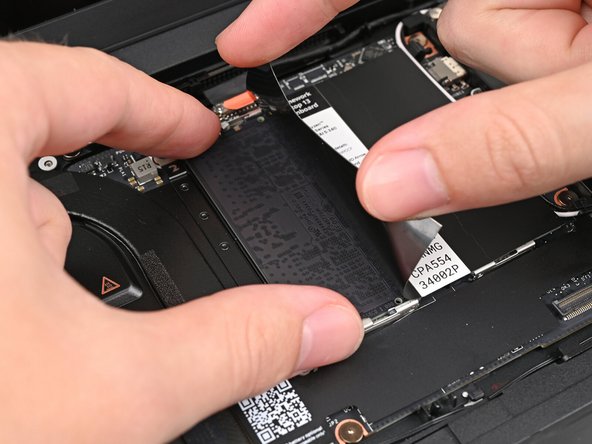

Insert the contact edge into the socket at a shallow angle. The gold contacts should mostly be covered by the socket.

Press the edges of the module down until the side clips lock it in place.

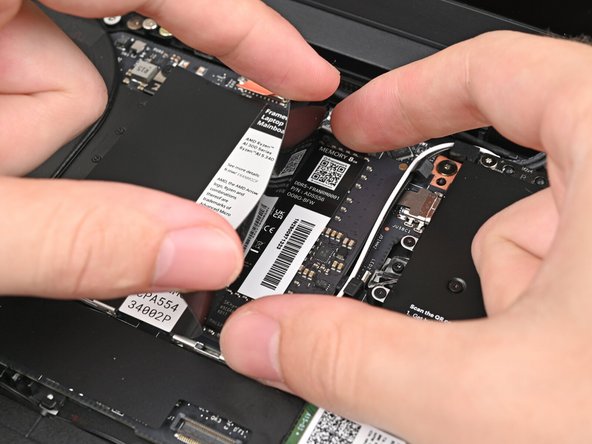

Repeat the previous step for the right socket, except orient the module so its label is facing upward.

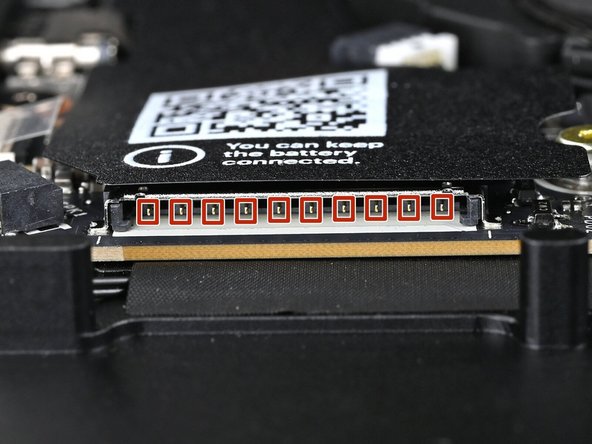

Before continuing, check the pins on the Battery socket and make sure they aren't bent.

If any of the pins are bent, reach out to Framework Support.

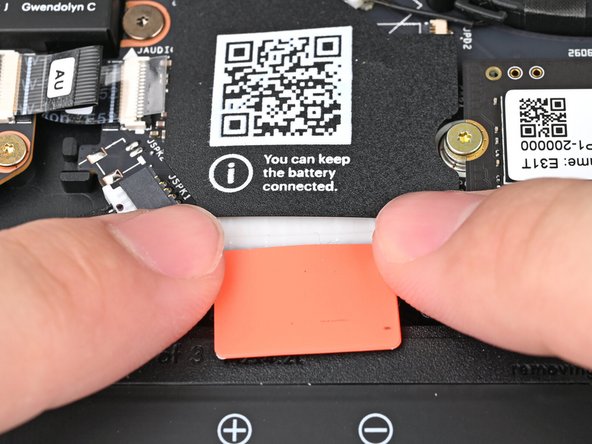

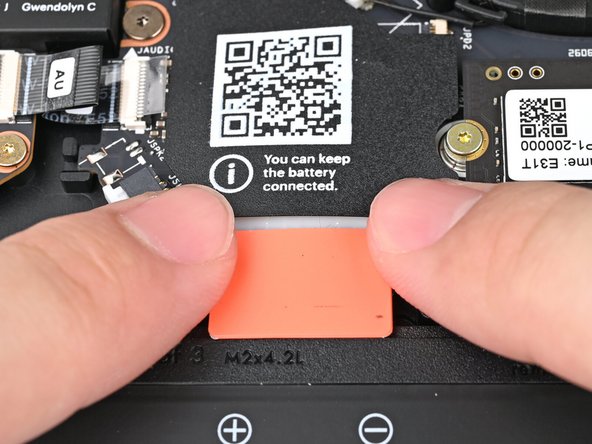

Use your fingers to align the Battery connector with its socket and slide it straight in to reconnect the Battery.

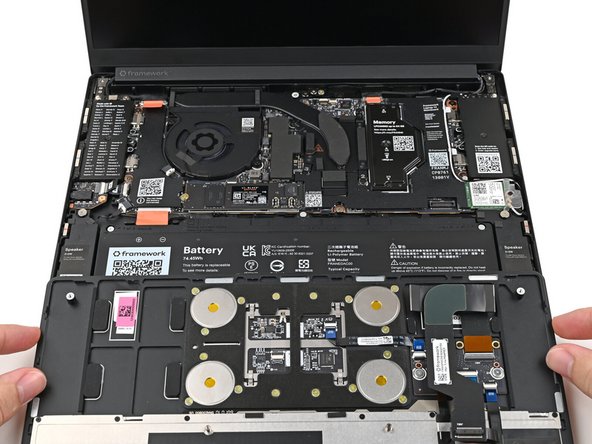

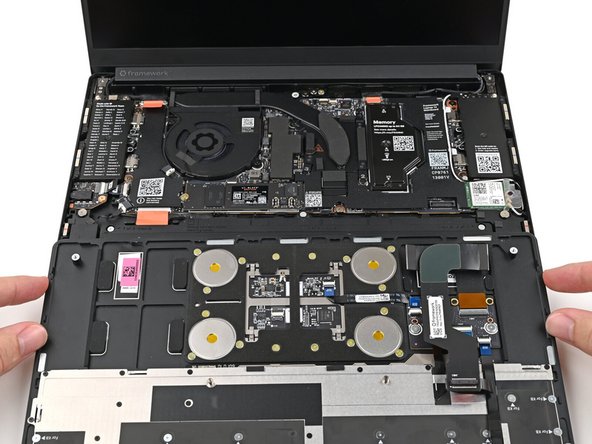

Position the Input Cover, keyboard down, on top of the laptop so it just covers the Battery.

This allows the Touchpad Cable to be folded over and reconnected without straining it.

Insert your finger into the Touchpad Cable press connector loop.

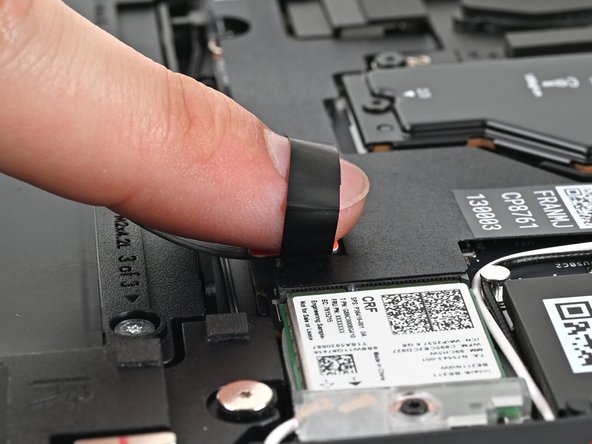

Align the press connector over its socket and press down with your finger.

You should hear it "click" into place. Don't try to force the connector into place. If you're having trouble, reposition it and try again.

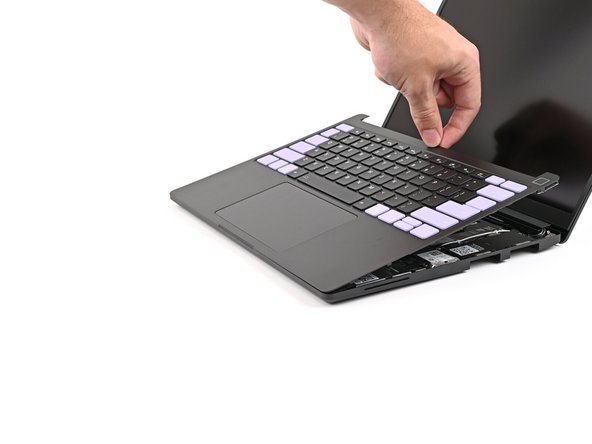

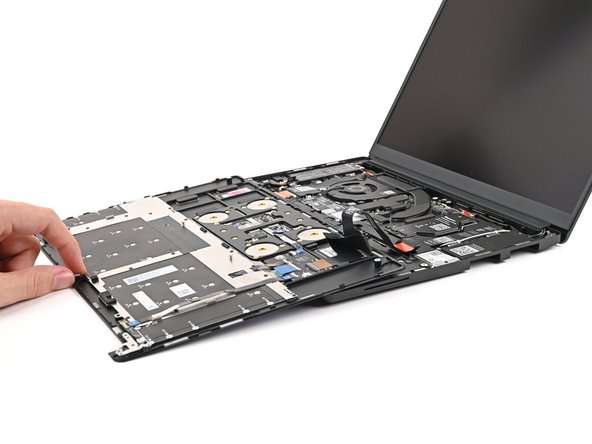

Flip the Input Cover over the laptop and align the bottom edges.

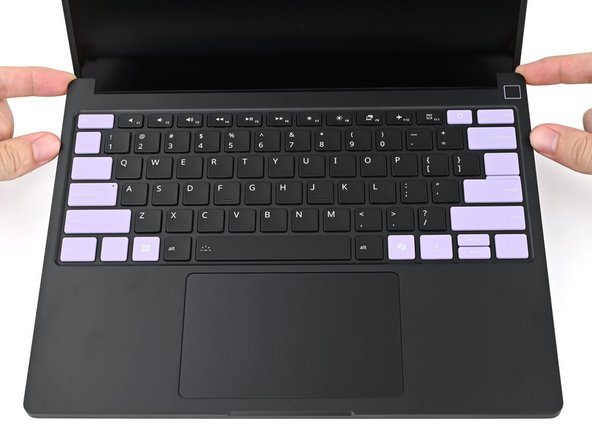

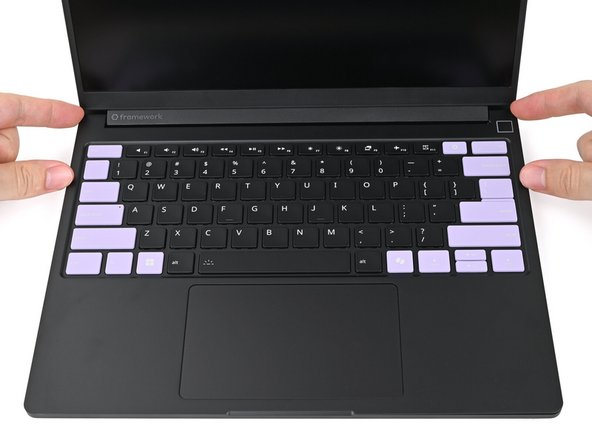

Lay the Input Cover over the laptop and let the magnets snap it into place.

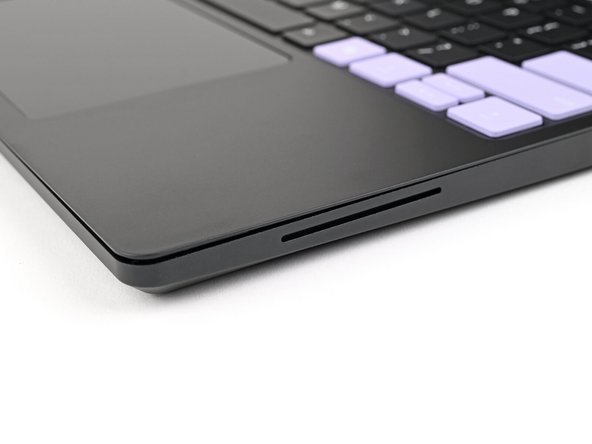

The bottom right corner of the Input Cover won't sit flush with the laptop until you tighten its screws.

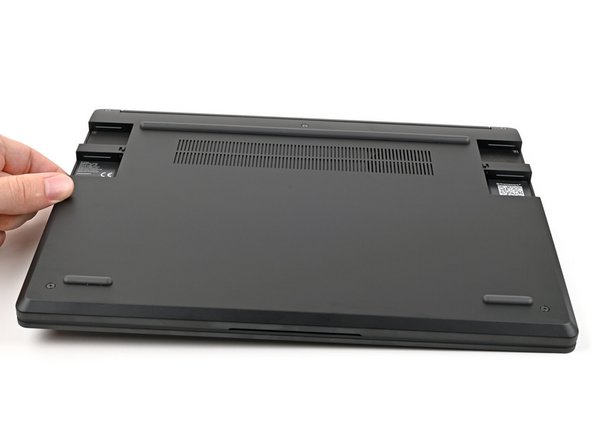

Close the Laptop and flip it over.

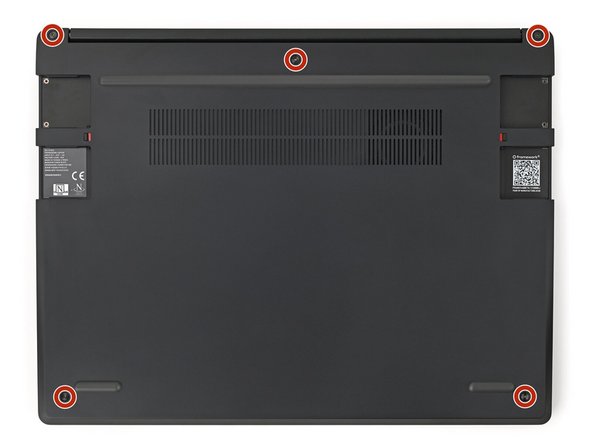

Use your Framework Screwdriver to tighten the five captive T5 Torx screws securing the Input Cover.

Don't overtighten the screws—just make sure they're snug.

For Expansion Card compatibility, check here.

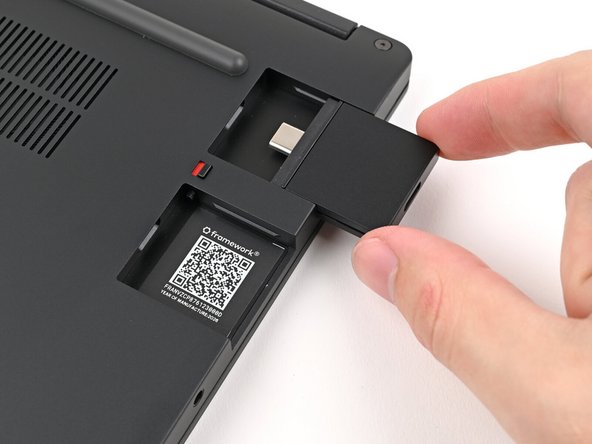

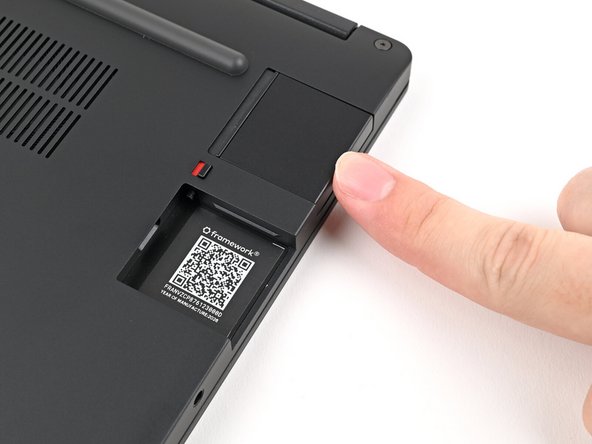

Slide an Expansion Card into an Expansion Card slot.

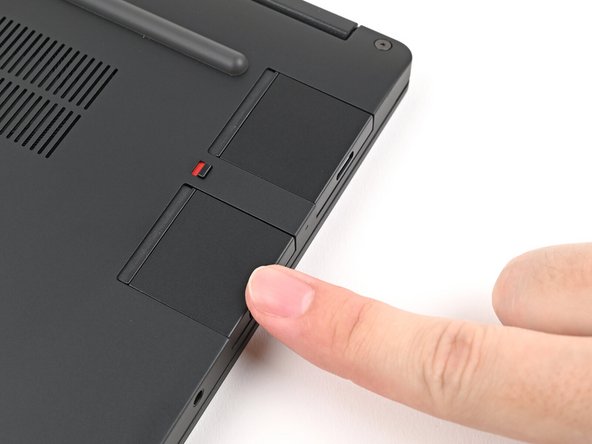

You don't need to unlock the latch to install the Expansion Cards—only when you want to remove them.

The Expansion Cards should click into place, and the front edge should be flush with the laptop.

Repeat for the remaining Expansion Cards.

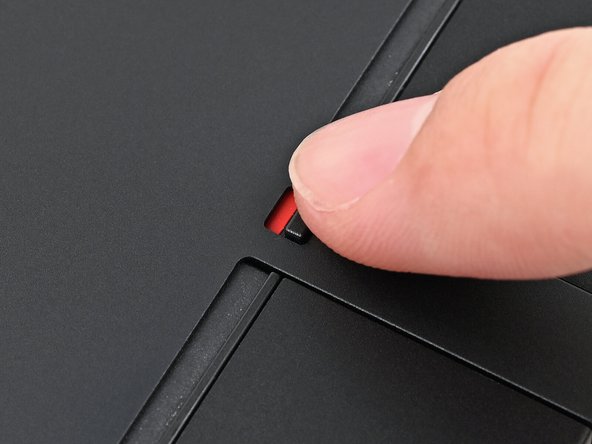

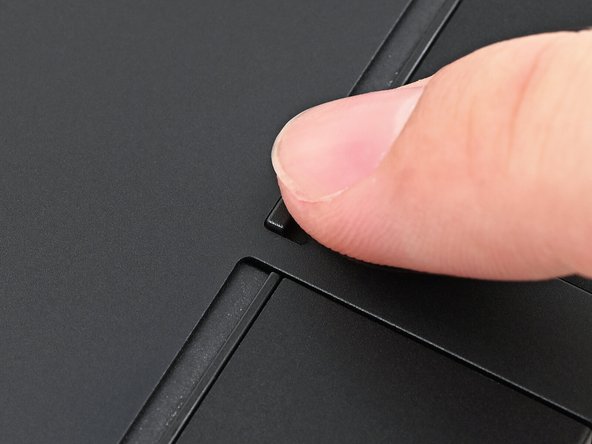

Use your finger to flip both latches and lock the rows of Expansion Cards.
