How to Reset the Mainboard in your Framework Laptop 13 Pro

Unplug all cables and fully shut down your laptop from the OS.

Use your Framework Screwdriver to loosen the five captive T5 Torx screws securing the Input Cover.

Flip over your laptop and open it.

Use your fingers to lift the Input Cover up and release it from its magnets.

Don't fully remove the Input Cover yet, as it's still attached by the Touchpad Cable.

If you're having trouble lifting the Input Cover, you can leverage the gap at the bottom right corner to get your fingers fully under it.

Flip the top of the Input Cover so the Keyboard is facing down.

Rest the Input Cover over the Battery, making sure the Touchpad Cable isn't being strained.

If the LEDs on the left and right sides of the Mainboard are flashing, then your laptop is still powered on. Make sure your laptop is completely powered off before continuing.

Insert your finger into the Touchpad Cable press connector loop.

Lift up to disconnect the Touchpad Cable from the Mainboard.

Remove the Input Cover.

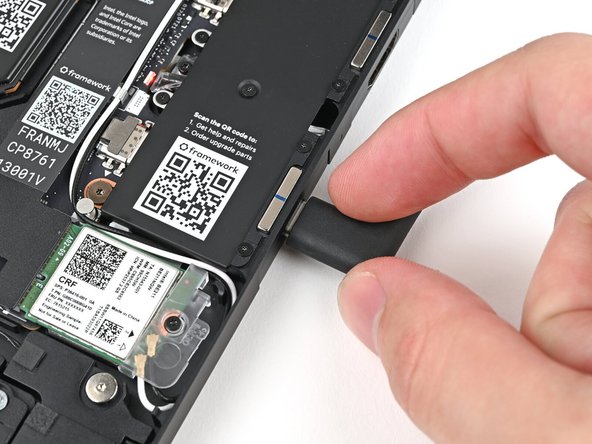

Plug the laptop into a power source.

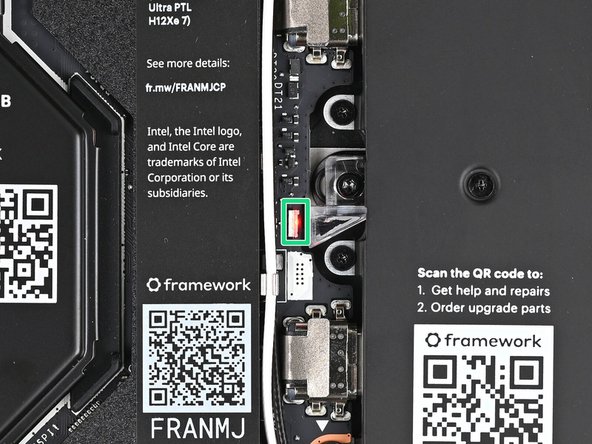

The red status LED near the right Expansion Card slots should blink continuously. If this LED isn't blinking, the laptop isn't receiving power correctly—try another USB-C port.

Don't proceed unless the LED is blinking.

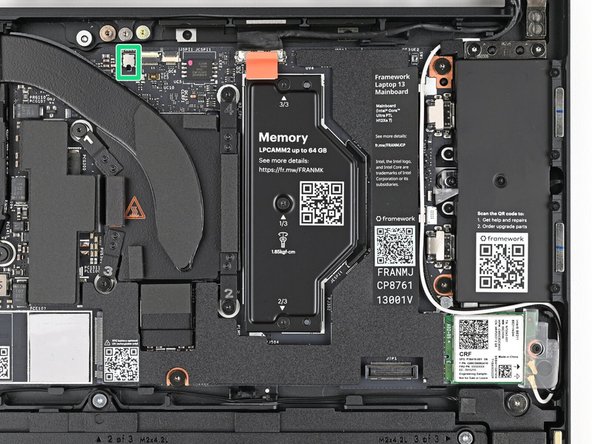

Locate the chassis open switch above the CPU.

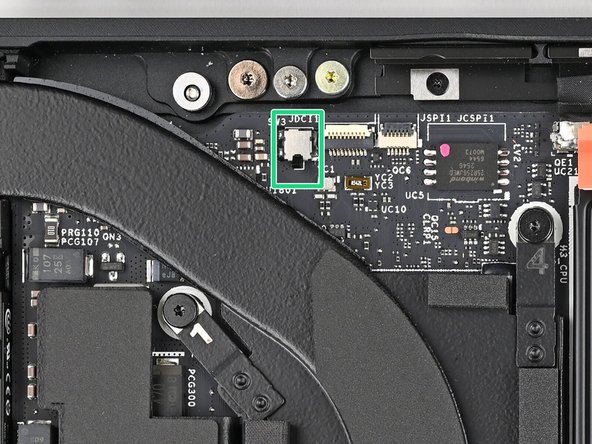

This switch is a sensor that detects if the Input Cover has been removed. It's a small silver block with a black toggle tab.

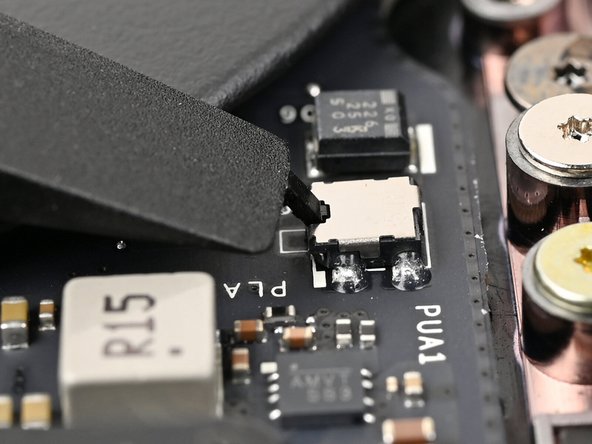

Use your finger or the flat end of a Framework Screwdriver to do the following actions 10 times:

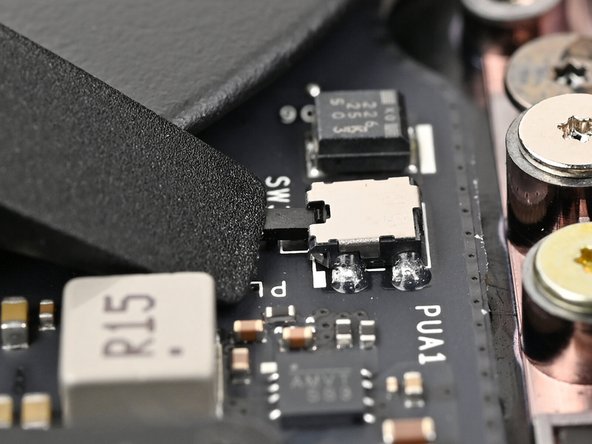

Press and hold the switch down for two seconds.

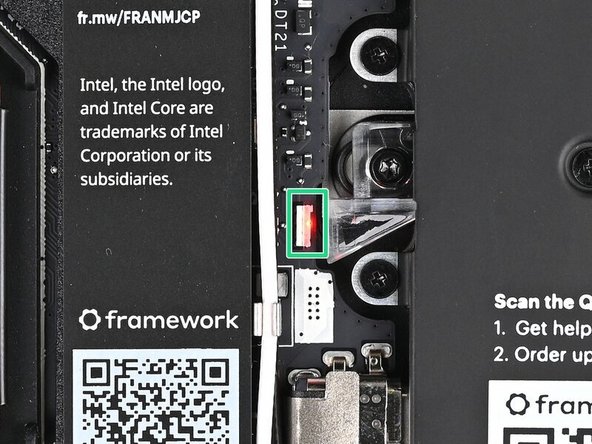

Release the switch and wait for the indicator LED to resume blinking.

Repeat the process until you've done it 10 times.

Position the Input Cover, Keyboard down, on top of the laptop so it just covers the Battery.

This allows the Touchpad Cable to be folded over and reconnected without straining it.

Insert your finger into the Touchpad Cable press connector loop.

Align the press connector over its socket and press down with your finger.

You should hear it "click" into place. If you're having trouble, reposition it and try again. Don't try to force the connector into place.

Flip the Input Cover over the laptop and align the bottom edges.

Lay the Input Cover over the laptop and let the magnets snap it into place.

The bottom right corner of the Input Cover won't sit flush with the laptop until you tighten its screws.

Close the laptop and flip it over.

Use your Framework Screwdriver to tighten the five captive T5 Torx screws securing the Input Cover.

Don't overtighten the screws—just make sure they're snug.
