Introduction

Did you lose a screw in your Framework Laptop 16? Fear not! Follow this guide to replace your missing screws with the Framework Laptop 16 Fastener Kit.

The Fastener Kit only replaces the non-captive screws in your laptop.

Use the links below to jump to the part and find which screw to use:

Tools

Parts

No parts specified.

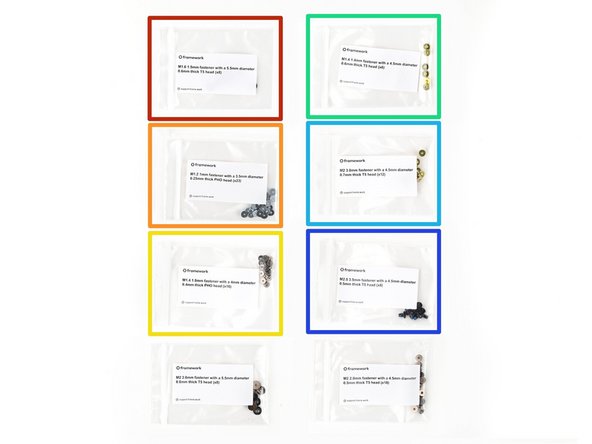

  1. The Fastener Kit contains the following: Grey screws labeled "M1.6 1.5mm fastener with a 5.5mm diameter 0.6mm thick T5 head"

    • The Fastener Kit contains the following:

    • Grey screws labeled "M1.6 1.5mm fastener with a 5.5mm diameter 0.6mm thick T5 head"

    • Silver screws labeled "M1.2 1.0mm fastener with a 3.5mm diameter 0.25mm thick PH0 head"

    • Grey screws labeled "M1.4 1.8mm fastener with a 4.0mm diameter 0.4mm thick PH0 head"

    • Gold screws labeled "M1.4 1.4mm fastener with a 4.5mm diameter 0.6mm thick T5 head"

    • Gold screws labeled "M2 3.0mm fastener with a 4.5mm diameter 0.7mm thick T5 head"

    • Black screws labeled "M2.5 3.5mm fastener with a 4.5mm diameter 0.5mm thick T5 head"

    • Your Framework Laptop comes with a spare screw of each size, attached to the chassis under the ventilation plate. You can use the Fastener Kit to replenish any screws you used there.

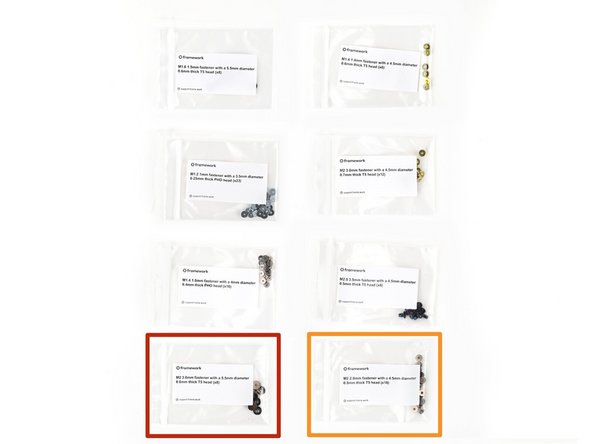

  2. The Fastener Kit also comes with two additional sets of screws that aren't included with the spares:

    • The Fastener Kit also comes with two additional sets of screws that aren't included with the spares:

    • Grey screws labeled "M2 2.6mm fastener with a 5.5mm diameter 0.8mm thick T5 head"

    • Grey screws labeled "M2 2.0mm fastener with a 4.5mm diameter 0.5mm thick T5 head"

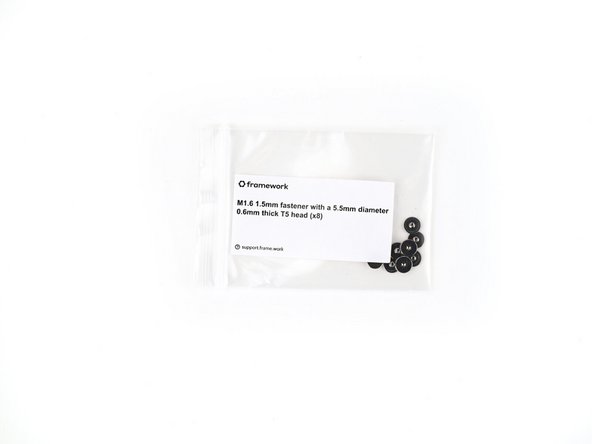

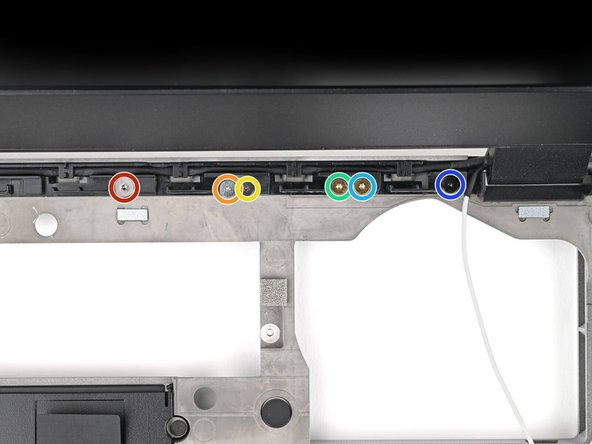

  3. Use the grey screws labeled "M1.6 1.5mm fastener with a 5.5mm diameter 0.6mm thick T5 head" to secure the Webcam and Mainboard. Use the grey screws labeled "M1.6 1.5mm fastener with a 5.5mm diameter 0.6mm thick T5 head" to secure the Webcam and Mainboard. Use the grey screws labeled "M1.6 1.5mm fastener with a 5.5mm diameter 0.6mm thick T5 head" to secure the Webcam and Mainboard.

    • Use the grey screws labeled "M1.6 1.5mm fastener with a 5.5mm diameter 0.6mm thick T5 head" to secure the Webcam and Mainboard.

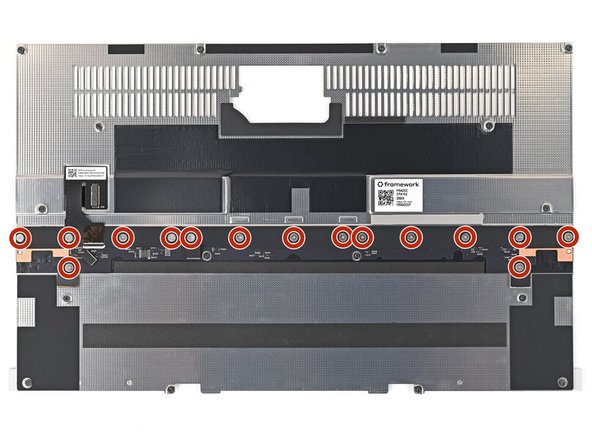

  4. Use the silver screws labeled "M1.2 1.0mm fastener with a 3.5mm diameter 0.25mm thick PH0 head" to secure the Input Connector Board and Input Module. Use the silver screws labeled "M1.2 1.0mm fastener with a 3.5mm diameter 0.25mm thick PH0 head" to secure the Input Connector Board and Input Module. Use the silver screws labeled "M1.2 1.0mm fastener with a 3.5mm diameter 0.25mm thick PH0 head" to secure the Input Connector Board and Input Module.

    • Use the silver screws labeled "M1.2 1.0mm fastener with a 3.5mm diameter 0.25mm thick PH0 head" to secure the Input Connector Board and Input Module.

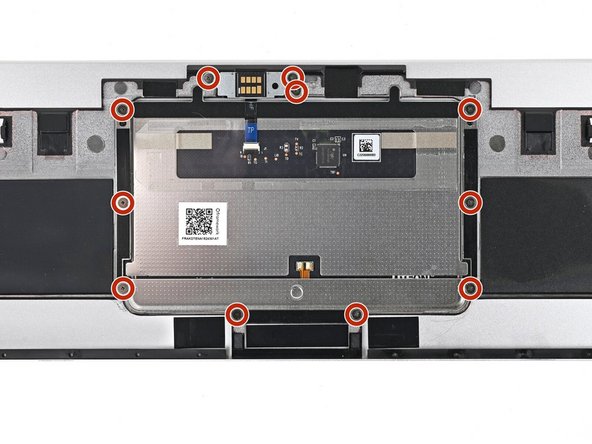

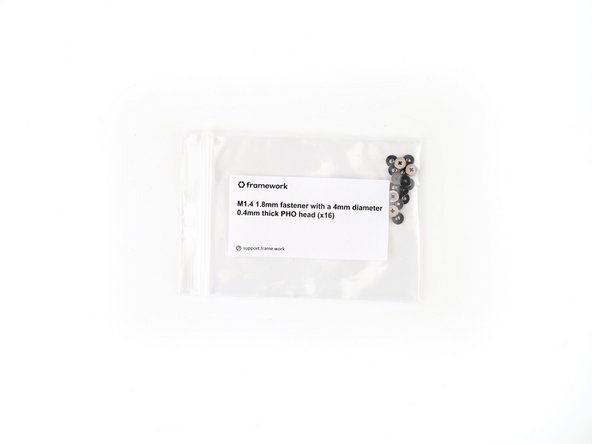

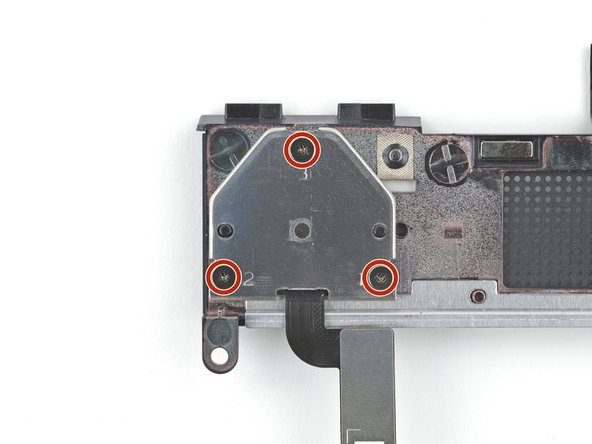

  5. Use the grey screws labeled "M1.4 1.8mm fastener with a 4.0mm diameter 0.4mm thick PH0 head" to secure the Fingerprint Reader and the bottom of the Touchpad. Use the grey screws labeled "M1.4 1.8mm fastener with a 4.0mm diameter 0.4mm thick PH0 head" to secure the Fingerprint Reader and the bottom of the Touchpad. Use the grey screws labeled "M1.4 1.8mm fastener with a 4.0mm diameter 0.4mm thick PH0 head" to secure the Fingerprint Reader and the bottom of the Touchpad.

    • Use the grey screws labeled "M1.4 1.8mm fastener with a 4.0mm diameter 0.4mm thick PH0 head" to secure the Fingerprint Reader and the bottom of the Touchpad.

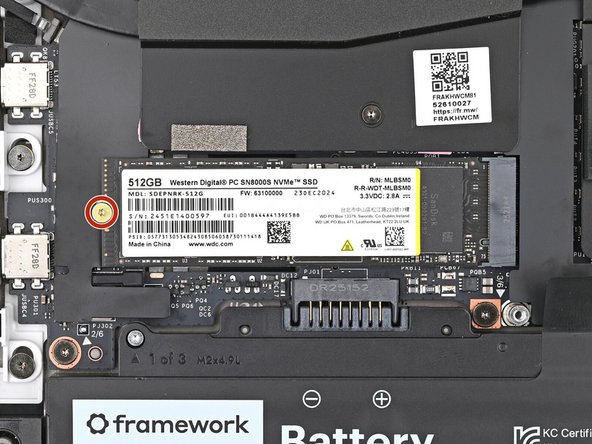

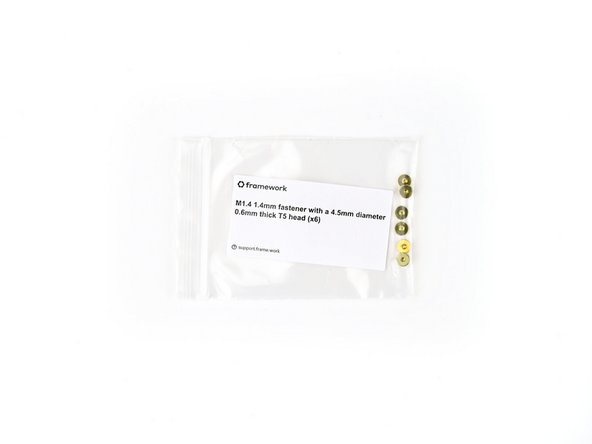

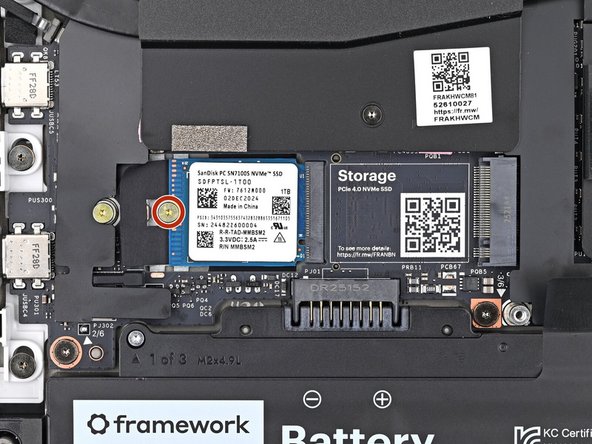

  6. Use the gold screws labeled "M1.4 1.4mm fastener with a 4.5mm diameter 0.6mm thick T5 head" to secure the Primary and Secondary Storage. Use the gold screws labeled "M1.4 1.4mm fastener with a 4.5mm diameter 0.6mm thick T5 head" to secure the Primary and Secondary Storage. Use the gold screws labeled "M1.4 1.4mm fastener with a 4.5mm diameter 0.6mm thick T5 head" to secure the Primary and Secondary Storage.

    • Use the gold screws labeled "M1.4 1.4mm fastener with a 4.5mm diameter 0.6mm thick T5 head" to secure the Primary and Secondary Storage.

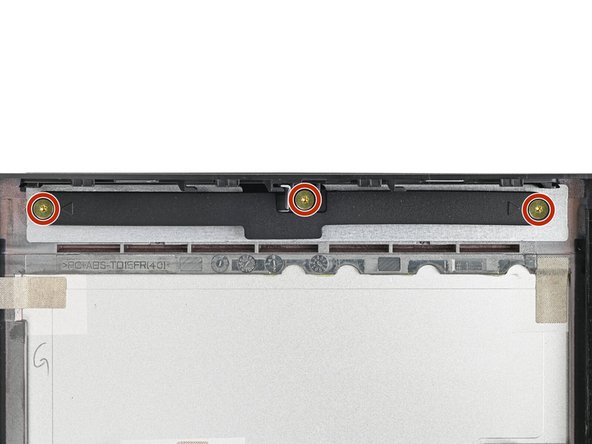

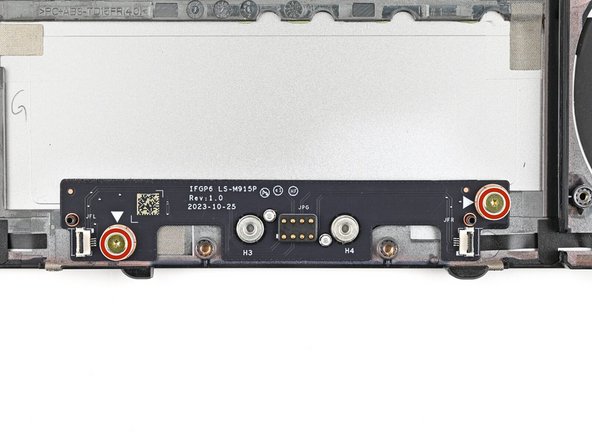

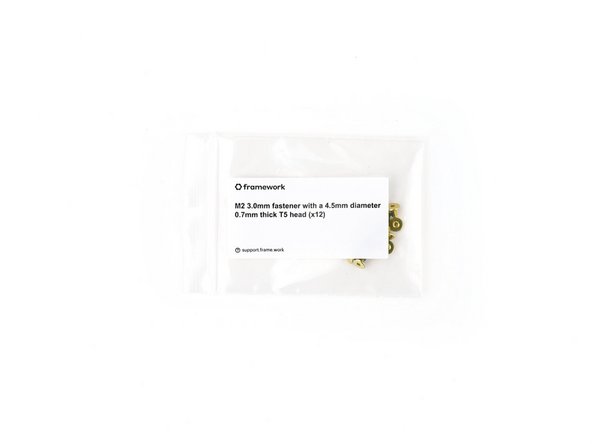

  7. Use the gold screws labeled "M2 3.0mm fastener with a 4.5mm diameter 0.7mm thick T5 head" to secure the Expansion Bay Shell components. Use the gold screws labeled "M2 3.0mm fastener with a 4.5mm diameter 0.7mm thick T5 head" to secure the Expansion Bay Shell components. Use the gold screws labeled "M2 3.0mm fastener with a 4.5mm diameter 0.7mm thick T5 head" to secure the Expansion Bay Shell components.

    • Use the gold screws labeled "M2 3.0mm fastener with a 4.5mm diameter 0.7mm thick T5 head" to secure the Expansion Bay Shell components.

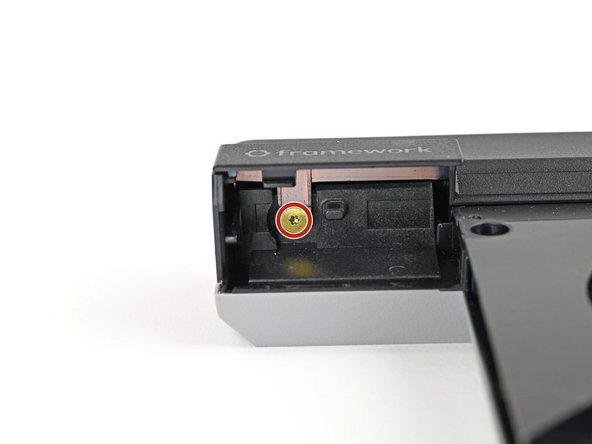

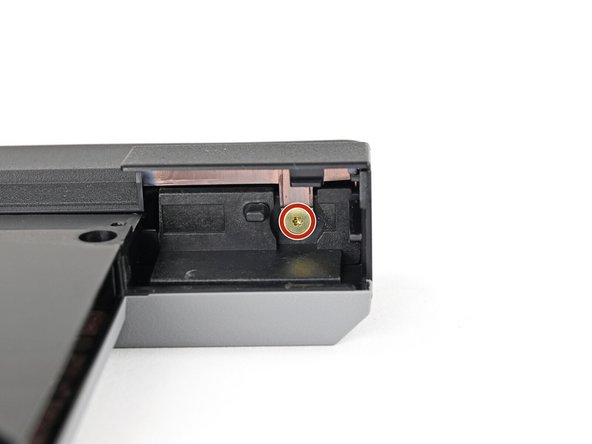

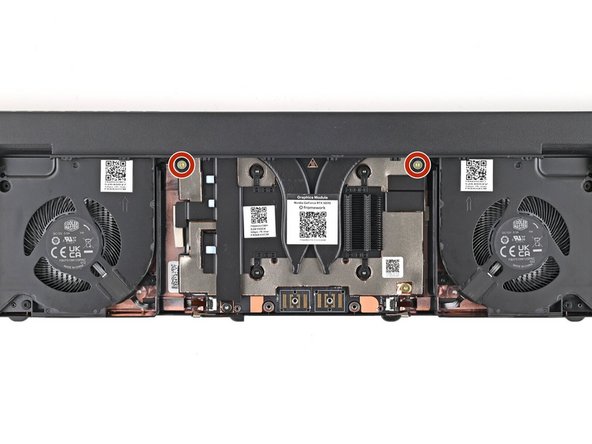

  8. Use the gold screws labeled "M2 3.0mm fastener with a 4.5mm diameter 0.7mm thick T5 head" to secure the Graphics Module cover. Use the gold screws labeled "M2 3.0mm fastener with a 4.5mm diameter 0.7mm thick T5 head" to secure the Graphics Module cover. Use the gold screws labeled "M2 3.0mm fastener with a 4.5mm diameter 0.7mm thick T5 head" to secure the Graphics Module cover.

    • Use the gold screws labeled "M2 3.0mm fastener with a 4.5mm diameter 0.7mm thick T5 head" to secure the Graphics Module cover.

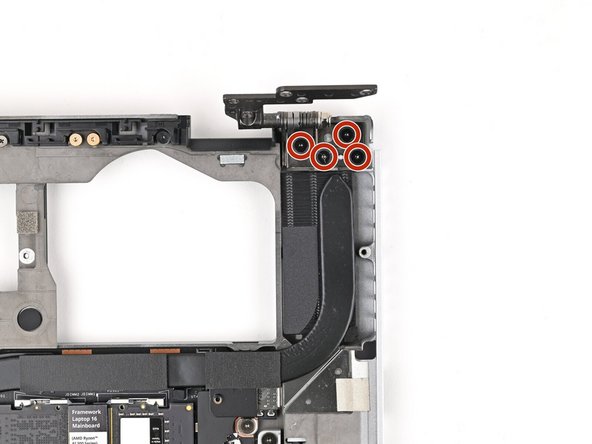

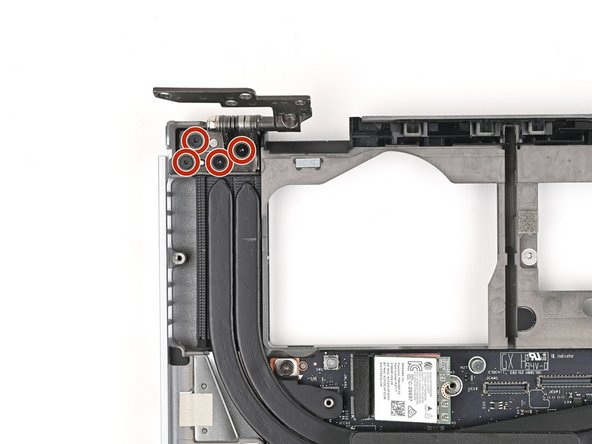

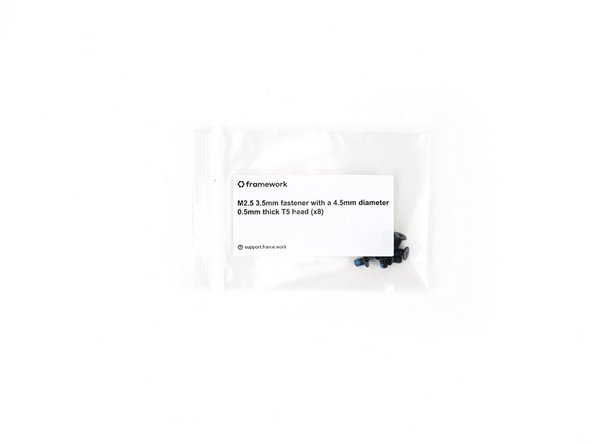

  9. Use the black screws labeled "M2.5 2.0mm fastener with a 4.5mm diameter 0.5mm thick T5 head" to secure the hinges to the bottom cover. Use the black screws labeled "M2.5 2.0mm fastener with a 4.5mm diameter 0.5mm thick T5 head" to secure the hinges to the bottom cover. Use the black screws labeled "M2.5 2.0mm fastener with a 4.5mm diameter 0.5mm thick T5 head" to secure the hinges to the bottom cover.

    • Use the black screws labeled "M2.5 2.0mm fastener with a 4.5mm diameter 0.5mm thick T5 head" to secure the hinges to the bottom cover.

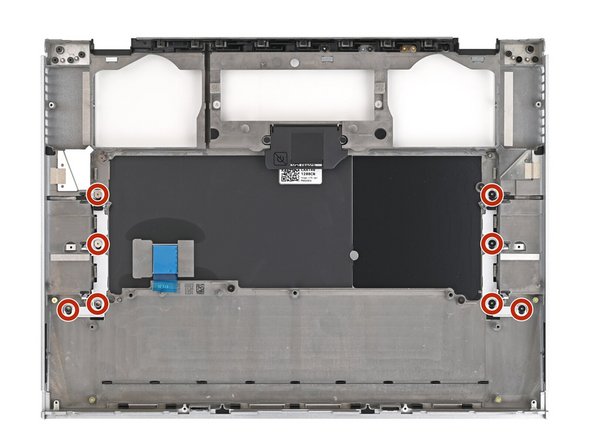

  10. Use the grey screws labeled "M2 2.6mm fastener with a 5.5mm diameter 0.8mm thick T5 head" to secure the Bottom Cover screws. Use the grey screws labeled "M2 2.6mm fastener with a 5.5mm diameter 0.8mm thick T5 head" to secure the Bottom Cover screws.

    • Use the grey screws labeled "M2 2.6mm fastener with a 5.5mm diameter 0.8mm thick T5 head" to secure the Bottom Cover screws.

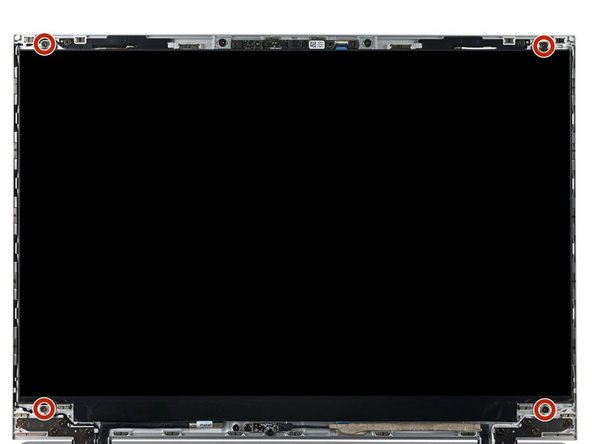

  11. Use the grey screws labeled "M2 2.0mm fastener with a 4.5mm diameter 0.5mm thick T5 head" to secure the display. Use the grey screws labeled "M2 2.0mm fastener with a 4.5mm diameter 0.5mm thick T5 head" to secure the display.

    • Use the grey screws labeled "M2 2.0mm fastener with a 4.5mm diameter 0.5mm thick T5 head" to secure the display.

Conclusion

If you need help, contact Framework support.
