Introduction

The magnetic Framework Bezel is one of the easiest components to swap. No tools needed, just align it to the Display and you are all set. We have several color options so that you can further customize your very own Framework Laptop 16.

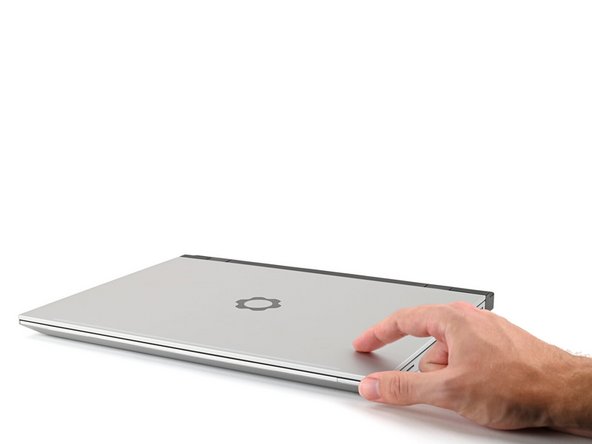

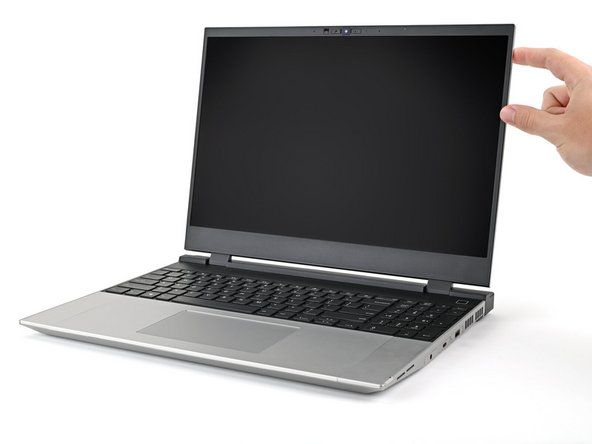

    • Open the Framework Laptop 16 past 90 degrees to remove the Bezel.

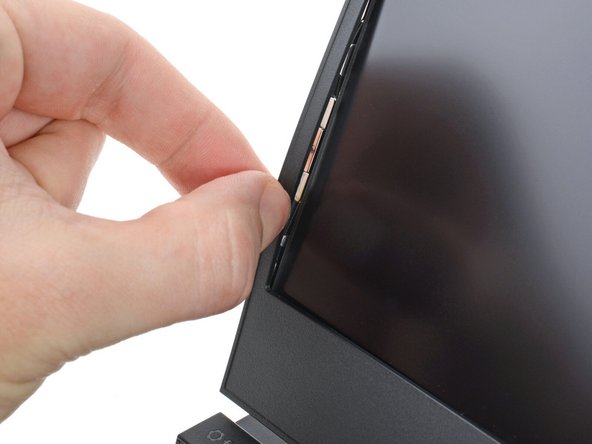

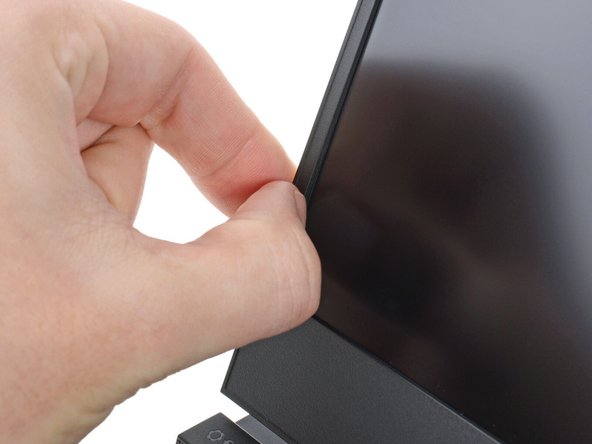

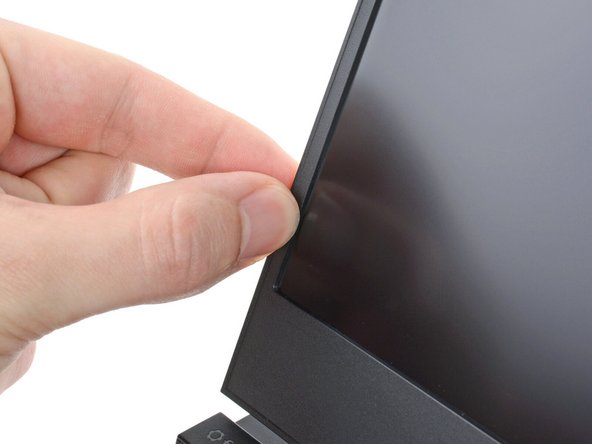

    • The Framework Bezel is attached by magnets so you will not require any tools to remove it. Just use your fingernail and pry the Bezel away from the display from one of the top corners of the Framework Laptop.

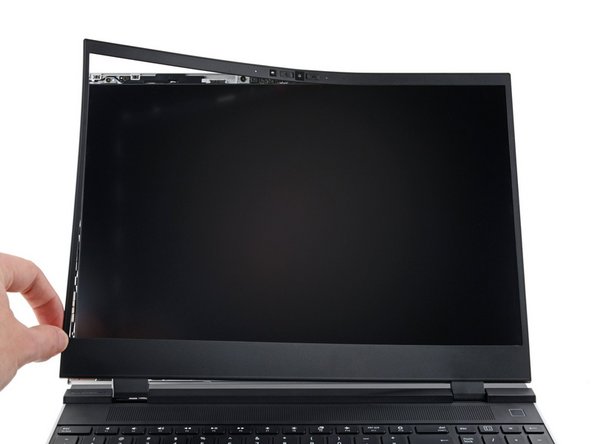

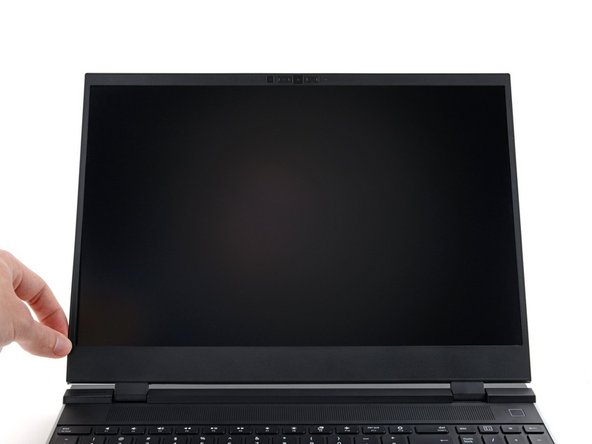

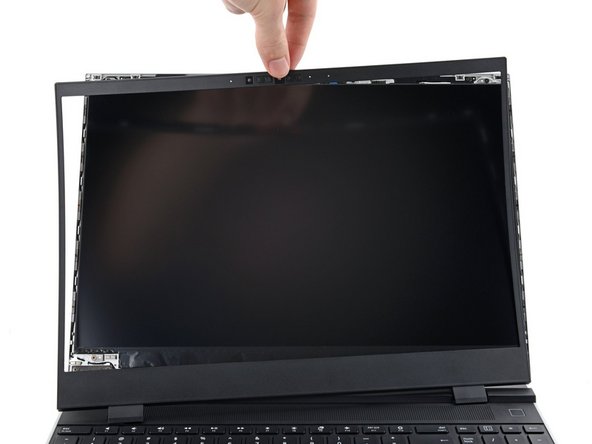

    • Once the Bezel starts peeling off towards the bottom of the Display, lift it up using caution. You might feel a little resistance due to the adhesive at the bottom of the display.

    • Open the Framework Laptop 16 lid to more than 90 degrees to attach the Bezel.

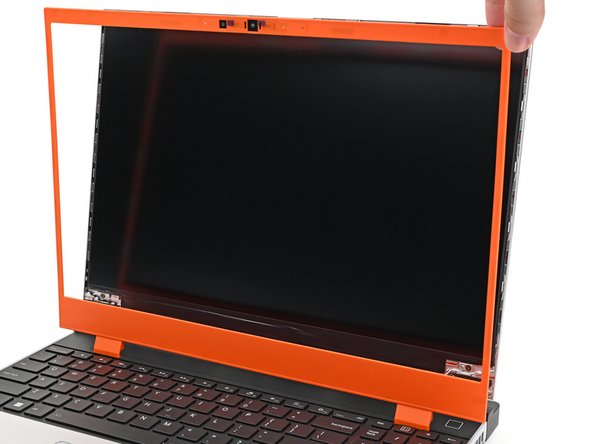

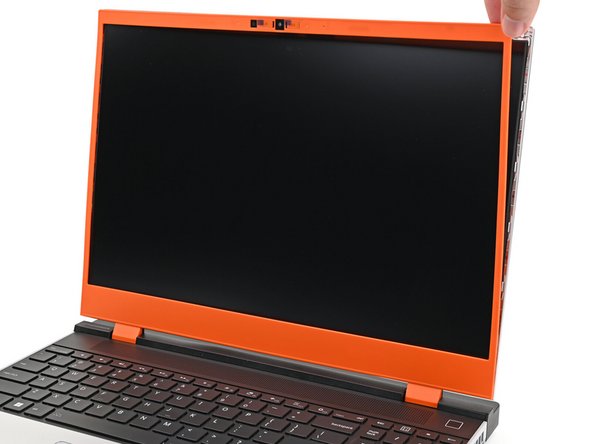

    • Align the corners of the Bezel to the display and place it down. The Bezel is attached by magnets and should easily click into place.

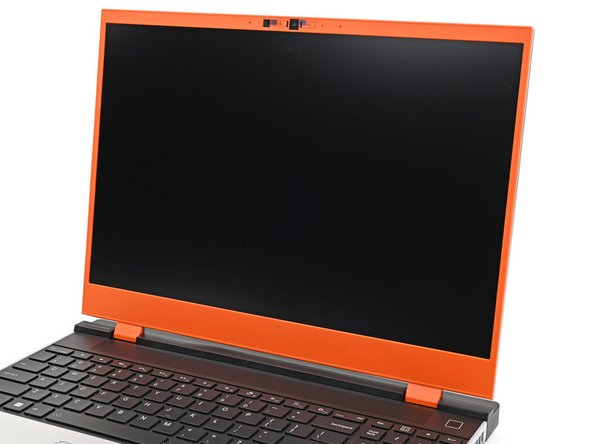

    • Make sure that all of the corners and edges of the Bezel are fully flat to the Top Cover. If the corners are not aligned. carefully lift up the part of the Bezel and guide it into place.

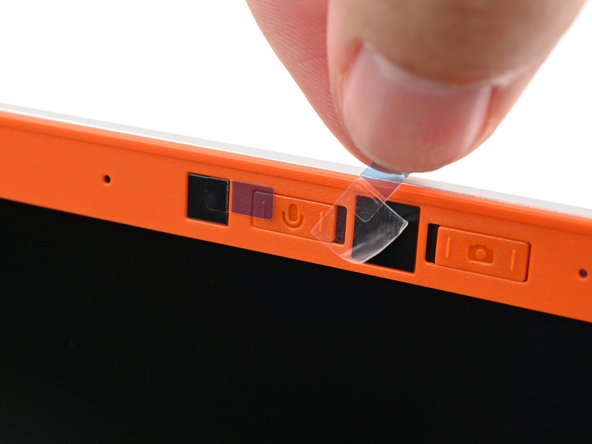

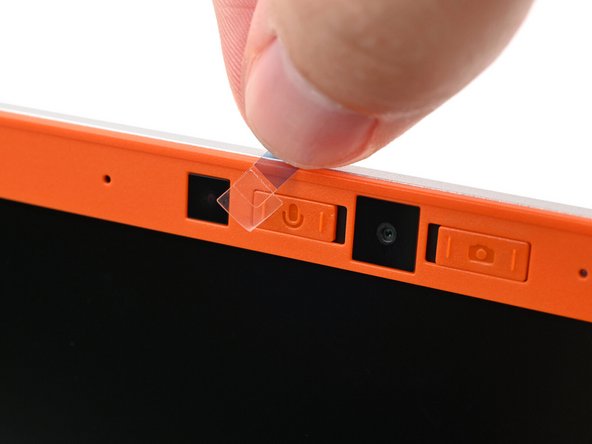

    • If installing a new Bezel, remove the protective film covering the Webcam and sensor.

Finish Line
